UFO 11DA Downlight Fitting
An adjustable recessed downlight fitting, with smooth flange, which is secured through the mounting surface with spring clips.
Available in a range of finishes, the eyeball in this fitting can be rotated and tilted to point directly at any objects to be illuminated. The light beam from this fitting is also focusable.
316 stainless steel version is suitable for use in wet areas and is special order only so is subject to extended lead times.

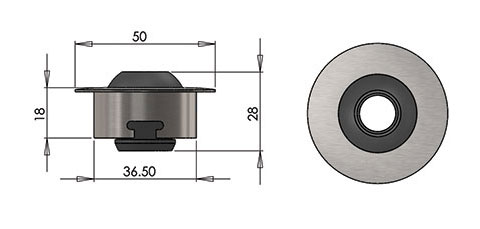

Note that dimensions are shown in mm
| TECHNICAL INFORMATION | |
|---|---|
| Lens | 18mm (0.71") biconvex clear focusing lens |
| Focus Range | 30° - 50° |
| Rotation & Tilt | 360° rotation / 20° tilt |
| Material | Aluminum or Stainless Steel (special order only) |
| Available Finishes | Aluminum: black, white or natural Chrome available subject to availability Stainless Steel: natural |
| Weight | Aluminum: 47.1g (0.1lb) |
| Mounting Method | Recessed, secured with springs |
| Mounting Hole Size | 40mm (1.57) |
| Ferrule Size | M10 or 8mm smooth |
| Fiber Sizes | 2mm (0.08") to 8mm (0.32") |
