The UFO CR4 Crystal Fitting
High quality European glass crystal fitting which gives a sparkling light point and a decorative surrounding pattern of light.
Suitable for use with either PMMA or glass fiber. Normal fiber sizes used with these fittings are 1.5mm (0.06"), 1.8mm (0.07") or 2mm (0.08"), depending on the brightness required.

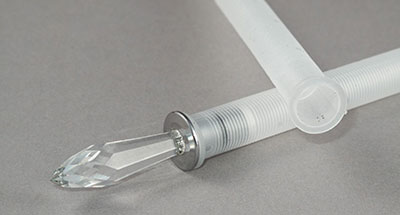

Mounting tubes are available for easy installstion in single or double skinned substrates. Click here for more details on these.
Technical Specifications
- Flange size: ∅15.5mm (0.61")
- Crystal diameter: ∅12mm (0.47")
- Overall length: 47mm (1.85")
- Recess depth: 17.6mm (0.69")
- Available finishes: Chrome; gold; custom to spec.
Downloads
Product Image
Product Dimensions
Dimensions shown in mm (inches).
