Sauna Crystal Kit
Kit Overview

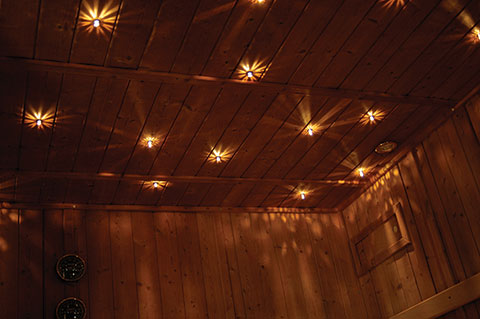

Create bright sparkling points of light in saunas, steam rooms, swimming pool ceilings and spas with a crystal kit from UFO.
The combination of two different crystal sizes within each kit allows for captivating patterns and spreads of light to be created across your ceiling space.
Whether you opt for a Vega Slimline illuminator that emits static white light or a Cube with its colour-changing capabilities, the end result will be mood enhancing luxury.

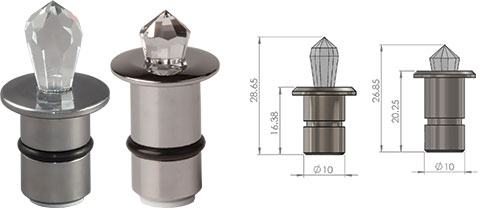

2 Sizes of Crystal Fitting
Kits are supplied with a total of 20, 30 or 70 crystal fittings. Total supplied depends on the kit ordered - see table below for number of each size supplied.
The crystal fittings are made from the finest cut crystal parts. There are two sizes to give variation to the sparkle effect and flanges are available in silver, brass or white.
Note that dimensions are shown in mm
Ceiling Mounting Tubes
These tubes ease installation of the crystal fittings in an insulated sauna ceiling. They are 80mm long and require a 12mm cutout.
Fiber Optic Harness
The harness is manufactured from 1.5mm diameter PMMA fiber fitted with end ferrules which plug into the back of the crystals. Note that PMMA fiber must be protected from heat.
Illuminator Options
Overview
Nova Mini
Vega Slimline
The Nova Mini or the Vega Slimline White Light
Whether you want a calming, static white light effect or would prefer the option to choose your own color or even an exciting color change effect, our illuminator choices have all bases covered.

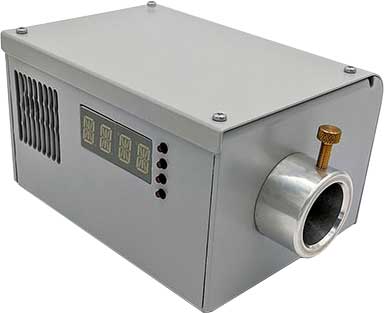

Our Nova Mini illuminator offers full color change ability controlled either with the included remote control or by the units inbuilt buttons.
The Vega Slimline is a compact unit which outputs powerful static white light. The illuminator body has an inbuilt dimmer allowing you to raise or lower the light level to suit your mood.
Both illuminators offer full DMX control and the Vega also includes 0-10V control so they can easily be used as part of a more advanced lighting setup.
Nova Mini Specification
| GENERAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm diameter |
| Fibre Type | Glass / PMMA |
| Material / Finish | Aluminium, powdercoated grey (RAL9006) |
| Dimensions (L x W x H) | 183mm x 122mm x 100mm |
| Weight | 1.1kg |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10° |
| Max. Ambient Temperature | 45° |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Control Functionality | DMX & manual dimming |
| DMX Functionality | User addressable to 512 |
| DMX Channels | 6 channels |
| Colour Change Functionality | DMX, manual & remote control |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | Custom RGBW array |
| LED Array Power | 46W |
| LED Array Model | Luxeon 36 LED Array |
| LED Array Life (L70, B10) | 50,000 hours @ 25°C |
| White Light Colour Temperature Options | 6500K (standard), 4000K, 3000K |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Supply Voltage | 90-264Vac |
| Mains Running Current | 0.2A @240Vac |
| Mains Voltage VA Rating | 50VA |
| External PSU Type | Meanwell, 24V, 2.5A, 60W |
| Fan Type | Sunon, 80mm, 22dBA |
| RF REMOTE CHARACTERISTICS | |
|---|---|
| RF Remote Frequency | 2.4GHz |
| RF Remote Range | 30m, depending on environment |
| RF Remote Power | 2 x AAA batteries (supplied) |
Vega Slimline Specification
| GENERAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm diameter |
| Fiber Type | Glass / PMMA |
| Material / Finish | ABS - grey |
| Dimensions (L x W x H) | 222mm x 114mm x 81mm 8.74" x 4.5" x 3.2" |
| Weight | 0.92kg (2.03lb) |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10°C (14°F) |
| Max. Ambient Temperature | 45°C (113°F) |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Control Functionality | 0-10V / DMX / Manual Dimming |
| DMX Functionality | User addressable to 512 |
| DMX Channels | 2 channels |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | White light |
| LED Array Power | 18W |
| LED Array Model | Cree Xlamp - MT-G2 |
| LED Array Life (L70, B10) | >36,000 hours (typical) |
| 2700K LED Option | 80CRI / 1720lm |
| 3000K LED Option | 80CRI / 1770lm |
| 4000K LED Option | 80CRI / 1820lm |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Supply Voltage | 90-264Vac |
| Mains Running Current | 0.23A @240Vac |
| Mains Voltage VA Rating | 50VA |
| External PSU Type | Meanwell, 24V, 2.5A, 60W |
| Fan Type | Sunon, 60mm, 10dBA |
Ordering Codes
| Fiber Tail Lengths & Sizes | End Fittings / Mounting Tubes | Order Code (with Vega Illuminator) | Order Code (with Nova Mini Illuminator) |
|---|---|---|---|
| 20 x 4 meter (13.12ft) length - 1.5mm PMMA fiber | 6 x CR1 & 14 x CR2 crystals + 20 mounting tubes | SCC-20-VS-[+color]* | SCC-20-NM-[+color]* |
| 30 x 4 meter (13.12ft) length - 1.5mm PMMA fiber | 9 x CR1 & 21 x CR2 crystals + 30 mounting tubes | SCC-30-VS-[+color]* | SCC-30-NM-[+color]* |
| 70 x 4 meter (13.12ft) length - 1.5mm PMMA fiber | 21 x CR1 & 49 x CR2 crystals + 70 mounting tubes | SCC-70-VS-[+color]* | SCC-70-NM-[+color]* |
