Sauna Uplight Kit

Kit Overview

With our fiber optic uplight kits you can subtly alter the ambience of a room at the flick of a switch.

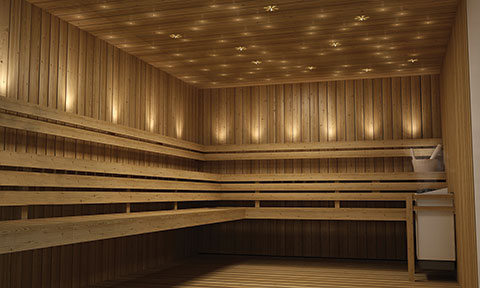

The stainless steel pavers that are included in the kits can be set in floors, benches and skirting and used to cast scallops of warm white or colour-changing light across walls or flooring in saunas, spas, steam rooms and swimming pool areas.

The lack of electricity in the paver fittings also means that they are free from heat and completely safe to touch and walk on, whilst their stainless steel casing has been designed to last a lifetime in damp and humid areas.

UFO Uplight Fittings

Kits are supplied with 4, 6 or 8 stainless steel paver fittings. Number supplied depends on the kit ordered.

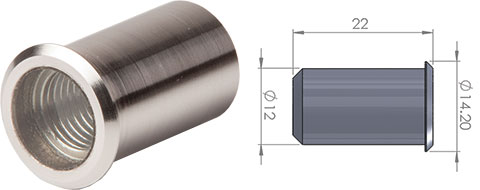

The fitting diameter is 14mm (0.55") and they require a 12mm (0.47") cut out for installation.

Note that dimensions are shown in mm

Fiber Optic Harness

The harness is manufactured from 4mm diameter glass fiber for an extra bright lighting effect.

Overview

Nova Mini

Vega Slimline

The Nova Mini or the Vega Slimline White Light

Whether you want a calming, static white light effect or would prefer the option to choose your own color or even an exciting color change effect, our illuminator choices have all bases covered.

Our Nova Mini illuminator offers full color change ability controlled either with the included remote control or by the units inbuilt buttons.

The Vega Slimline is a compact unit which outputs powerful static white light. The illuminator body has an inbuilt dimmer allowing you to raise or lower the light level to suit your mood.

Both illuminators offer full DMX control and the Vega also includes 0-10V control so they can easily be used as part of a more advanced lighting setup.

Note: illuminators must be installed outside the sauna due to heat and moisture.

Nova Mini Specification

GENERAL INFORMATION
Port Connector Size	30mm diameter
Fibre Type	Glass / PMMA
Material / Finish	Aluminium, powdercoated grey (RAL9006)
Dimensions (L x W x H)	183mm x 122mm x 100mm
Weight	1.1kg
Operating Environment	Indoor use - IP20
Min. Ambient Temperature	-10°
Max. Ambient Temperature	45°

LIGHTING & CONTROL INFORMATION
Control Functionality	DMX & manual dimming
DMX Functionality	User addressable to 512
DMX Channels	6 channels
Colour Change Functionality	DMX, manual & remote control

LED ARRAY DATA
LED Array Type	Custom RGBW array
LED Array Power	46W
LED Array Model	Luxeon 36 LED Array
LED Array Life (L70, B10)	50,000 hours @ 25°C
White Light Colour Temperature Options	6500K (standard), 4000K, 3000K

ELECTRICAL CHARACTERISTICS
Supply Voltage	90-264Vac
Mains Running Current	0.2A @240Vac
Mains Voltage VA Rating	50VA
External PSU Type	Meanwell, 24V, 2.5A, 60W
Fan Type	Sunon, 80mm, 22dBA

RF REMOTE CHARACTERISTICS
RF Remote Frequency	2.4GHz
RF Remote Range	30m, depending on environment
RF Remote Power	2 x AAA batteries (supplied)

Vega Slimline Specification

GENERAL INFORMATION
Port Connector Size	30mm diameter
Fiber Type	Glass / PMMA
Material / Finish	ABS - grey
Dimensions (L x W x H)	222mm x 114mm x 81mm 8.74" x 4.5" x 3.2"
Weight	0.92kg (2.03lb)
Operating Environment	Indoor use - IP20
Min. Ambient Temperature	-10°C (14°F)
Max. Ambient Temperature	45°C (113°F)

LIGHTING & CONTROL INFORMATION
Control Functionality	0-10V / DMX / Manual Dimming
DMX Functionality	User addressable to 512
DMX Channels	2 channels

LED ARRAY DATA
LED Array Type	White light
LED Array Power	18W
LED Array Model	Cree Xlamp - MT-G2
LED Array Life (L70, B10)	>36,000 hours (typical)
2700K LED Option	80CRI / 1720lm
3000K LED Option	80CRI / 1770lm
4000K LED Option	80CRI / 1820lm

ELECTRICAL CHARACTERISTICS
Supply Voltage	90-264Vac
Mains Running Current	0.23A @240Vac
Mains Voltage VA Rating	50VA
External PSU Type	Meanwell, 24V, 2.5A, 60W
Fan Type	Sunon, 60mm, 10dBA

Ordering Codes
