UFO Nebula RGB Illuminator
The UFO Nebula RGB illuminator is an advanced fiber optic unit with primary integral DMX control of individual LED multi-ports.
As well as full DMX adressing of each individual port, the Nebula also offers secondary manual dimming and a manual demonstration mode.
This is the ultimate illuminator for lighting and controlling active display fiber optic effect lighting with spectacular color change.
The Nebula features an LCD display which provides operator feedback for ease of use.
The Nebula is fitted with a 60 LED fiber multi-port output with 180 controllable fiber outputs.
Note that each fiber port can illuminate a number of individual 0.5mm or 0.25mm fibers. This makes the Nebula perfect for creating shooting star and other animated lighting displays which require numerous points of light to be effective.
DMX Addressing & Effects
The Nebula RGB features a 180-address-mode where each individual color LED can be addressed and also a 3-address-mode where all LED's of a single color can be addressed together.
There also 8 pre-defined manually selectable programs built into the illuminator which provide a variety of pre-programmed animation effects.
| GENERAL INFORMATION | |
|---|---|
| Product Code | UFO-NEB-RGB |
| Port Connector Sizee | 60 x 4mm connectors |
| Fiber Type | Glass / PMMA |
| Suitable PMMA Fiber Sizes* Note that multistranded fiber is manufactured from 0.75mm diameter fibre. (Contact UFO for details of suitable glass fiber) | Solid: 0.75mm, 1mm, 1.5mm, 2mm Multi-stranded: 1.5mm (3 strand), 2.4mm (7 strand), 3.1mm (12 strand) |
| Number Of Solid Fibers Per Port (Based on 3.1mm active diameter) | 0.75mm: 12 / 1mm: 7 / 1.5mm: 2 / 2mm: 1 |
| Material / Finish | Sheet steel / aluminum |
| Dimensions (L x W x H) | 200mm x 260mm x 88mm |
| Operating Environment | Indoor use only |
| Min. Ambient Temperature | -10° |
| Max. Ambient Temperature | 45° |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Decorative Effects | Color change & dimming independently on each fiber port |
| Control | DMX control of color change and dimming. Manual control of dimming. 8 in-built demo programs |
| DMX Connection | 5 pin XLR sockets |
| LED ARRAY DATA | |
|---|---|
| Individual LED Type | RGB |
| Individual LED Power | Red - 61mW Green - 82mW Blue - 84mW |
| Individual LED Lumen Output | Red -5.1lm Green - 11.7lm Blue - 2.7lm |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Mains Supply Voltage | 100 - 240V AC, 50-60Hz |
| PSU Type | Desktop class II listed with IEC power cord |
| PSU Output | 12V DC 30W (max.) |
*Note that UFO recommends the use of Mitsubishi Eska fiber with the Nebula ferrules. We cannot guarantee fiber from other manufacturers will fit due to different tolerances.

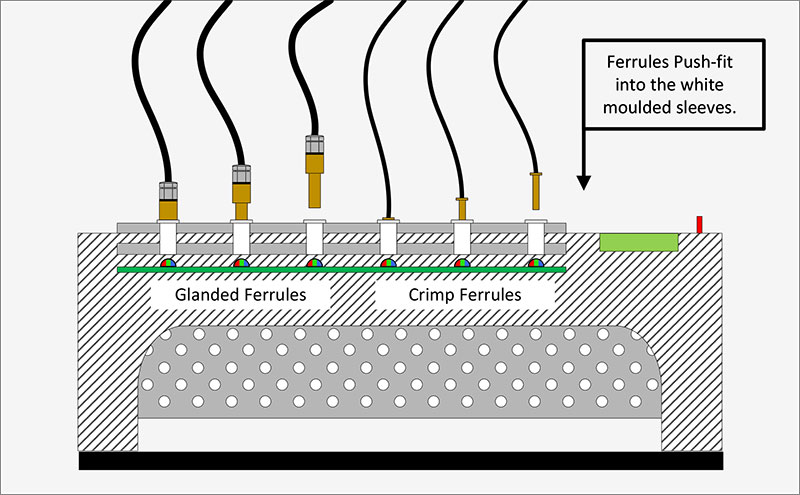

Fiber Installation & Ferrule Types
The Nebula is compatible with 2 types of ferrules - crimp and glanded.
Crimp ferrules are supplied factory terminated on the fiber harness and are simply pushed into the white moulded sleeves on the top of the illuminator.
Glanded ferrules are suitable for termination on site either by UFO installers or by third parties. The fiber is pushed through the gland, the gland is tightened and then the fiber is trimmed flush at the bottom of the ferrule. The ferrules are then pushed fully into the moulded sleeves.
Each ferrule sits directly above an LED which illuminates each fiber individually.
