Offering the ultimate in versatility, the Attracta system comprises an aluminum track which is paired with any number of magnetic light fittings. The fitting's magnetic attraction to the track allows them to be freely placed, moved, slid and removed without any interference from wires or cables.

attracta magnetic track lighting image 1

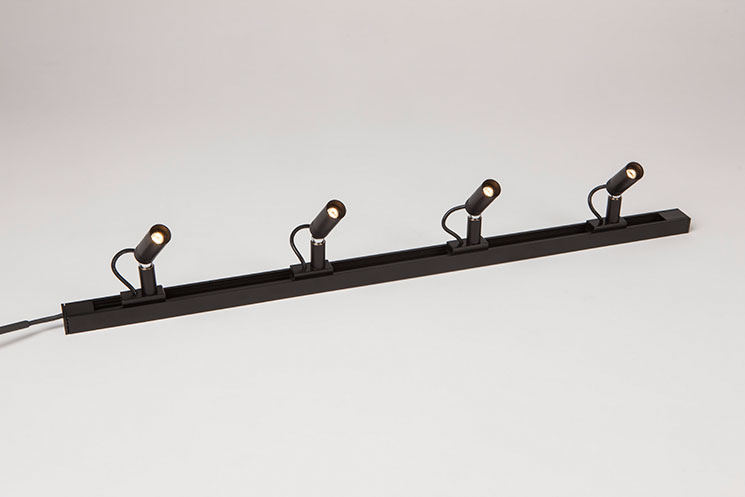

attracta magnetic track lighting image 2

The Attracta fittings offer full 360° rotation as well as 180° of tilt - they really can be pointed in almost any direction imaginable.

Different color temperatures and a variety of lens types, from narrow to wide angled, are available and all can be mixed and matched within the system.

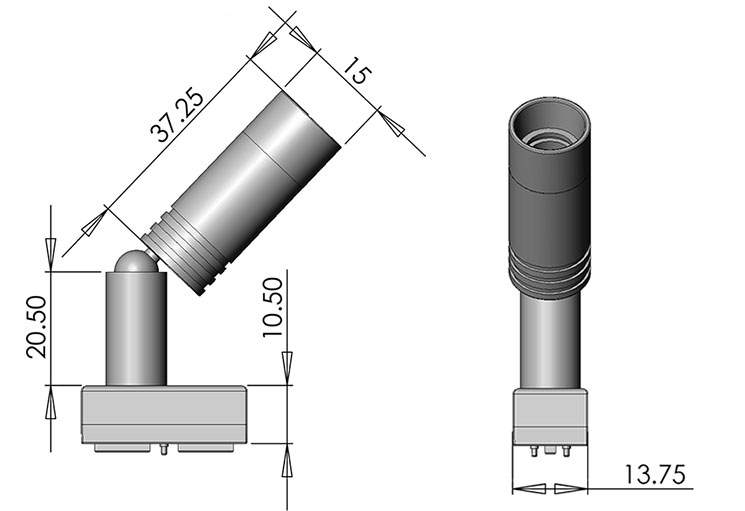

UFO ATTRACTA F1 FITTING / GENERAL INFORMATION
Light source	White Light LED
Operating Environment	Indoor use only
IP Rating	IP20
Material	Aluminum
Available Finishes	Black / Silver / White (all with chrome ball)
Securing Method	Magnetic

UFO ATTRACTA F1 FITTING / OPTICAL DATA
Available Optics	16° / 23° / 36° / 61°

UFO ATTRACTA F1 FITTING / LED ARRAY DATA
LED Type	Osram Oslon Square
LED Life (L70, B10)	>54,000 hours
Fitting Drive Current	150 mA
Color Temperature & CRI Options	2700K: 98CRI (typical) 3000K: 98CRI (typical) 4000K: 97CRI (typical) 5000K: 92CRI (typical) 6500K: 90CRI (typical)
*Lux levels (2700K) measured with narrow optic at specified distances	0.5m (1.64ft) - 662lux 1.0m (3.28ft) - 173lux 1.5m (4.92ft) - 78lux
*Lux levels (3000K) measured with narrow optic at specified distances	0.5m (1.64ft) - 827lux 1.0m (3.28ft) - 206lux 1.5m (4.92ft) - 90lux
*Lux levels (4000K) measured with narrow optic at specified distances	0.5m (1.64ft) - 809lux 1.0m (3.28ft) - 203lux 1.5m (4.92ft) - 91lux
*Lux levels (5000K) measured with narrow optic at specified distances	0.5m (1.64ft) - 800lux 1.0m (3.28ft) - 200lux 1.5m (4.92ft) - 90lux
*Lux levels (6500K) measured with narrow optic at specified distances	0.5m (1.64ft) - 800lux 1.0m (3.28ft) - 200lux 1.5m (4.92ft) - 90lux
Typical Luminous Flux Measured with 23° optic. Nominal values used for 5000K and 6500K fittings	2700K - 38lm/W 3000K - 50lm/W 4000K - 47lm/W 5000K - 55lm/w 6500K - 64lm/W

* Fittings measured using narrow optic at specified distances. Nominal values used for 3000K and 6500K variants.

UFO ATTRACTA F1 FITTING / ARTICULATION
Rotation	360°

UFO ATTRACTA F1 FITTING / DRIVER INFORMATION
Mains Supply Voltage	100/240V AC. 47-63Hz, 0.58A
PSU Output	5V DC
Driver Working Current	6A
Driver Functionality	Manual dimming, DMX, 0-10V, sensor input

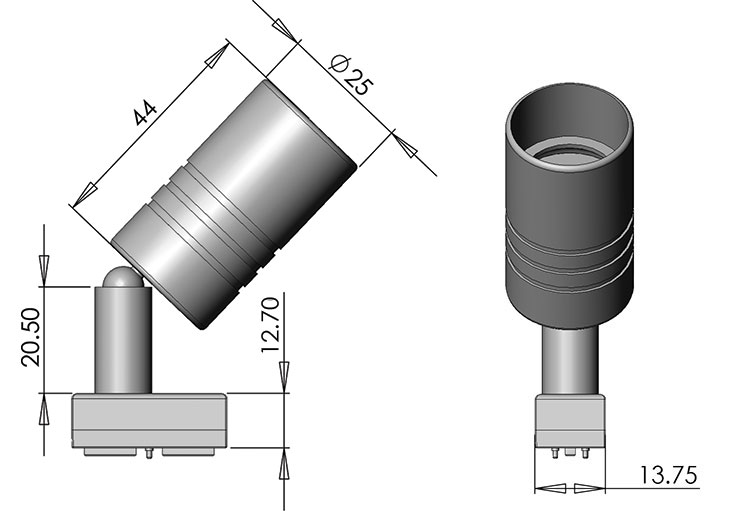

UFO ATTRACTA F2 FITTING / GENERAL INFORMATION
Light source	White Light LED
Operating Environment	Indoor use only
IP Rating	IP20
Material	Aluminium
Available Finishes	Black / Silver / White (all with chrome ball)
Securing Method	Magnetic

UFO ATTRACTA F2 FITTING / OPTICAL DATA
Available Optics	13.5° / 19° / 28°

UFO ATTRACTA F2 FITTING / LED ARRAY DATA
LED Type	Osram Oslon Square
LED Life (L70, B10)	>54,000 hours
Fitting Drive Current	400 mA
Color Temperature & CRI Options	2700K: 98CRI (typical) 3000K: 98CRI (typical) 4000K: 97CRI (typical) 5000K: 92CRI (typical) 6500K: 90CRI (typical)
*Lux levels (2700K) measured with medium optic at specified distances	0.5m (1.64ft) - 1392lux 1.0m (3.28ft) - 427lux 1.5m (4.92ft) - 205lux
*Lux levels (3000K) measured with medium optic at specified distances	0.5m (1.64ft) - 2061lux 1.0m (3.28ft) - 575lux 1.5m (4.92ft) - 258lux
*Lux levels (4000K) measured with medium optic at specified distances	0.5m (1.64ft) - 1237lux 1.0m (3.28ft) - 461lux 1.5m (4.92ft) - 238lux
*Lux levels (5000K) measured with medium optic at specified distances	0.5m (1.64ft) - 1500lux 1.0m (3.28ft) - 500lux 1.5m (4.92ft) - 200lux
*Lux levels (6500K) measured with medium optic at specified distances	0.5m (1.64ft) - 1500lux 1.0m (3.28ft) - 500lux 1.5m (4.92ft) - 200lux
Typical Luminous Flux Measured with 19° optic. Nominal values used for 5000K and 6500K fittings	2700K - 29lm/W 3000K - 43lm/W 4000K - 45lm/W 5000K - 53lm/w 6500K - 62lm/W

* Fittings measured using medium optic at specified distances. Nominal values used for 3000K and 6500K variants.

UFO ATTRACTA F2 FITTING / ARTICULATION
Rotation	360°

UFO ATTRACTA F2 FITTING / DRIVER INFORMATION
Mains Supply Voltage	100/240V AC. 47-63Hz, 0.58A
PSU Output	5V DC
Driver Working Current	6A
Driver Functionality	Manual dimming, DMX, 0-10V, sensor input

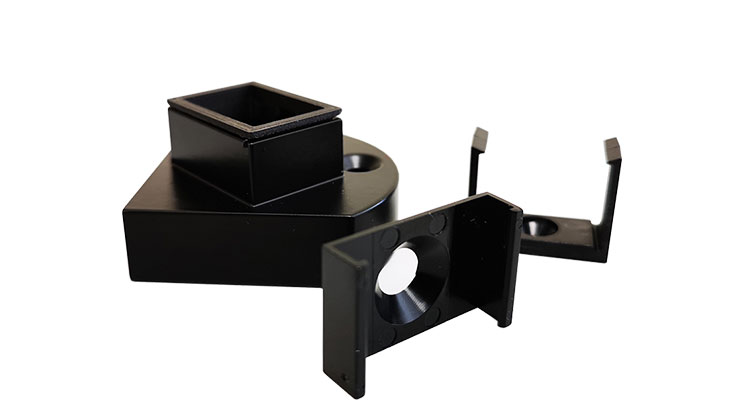

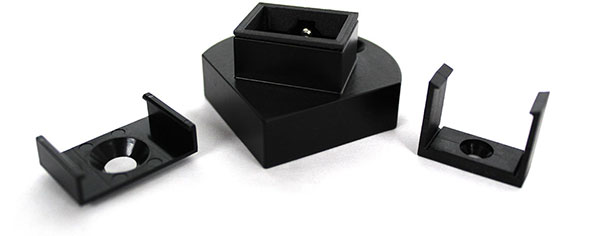

Track, Mounting Feet & Clips

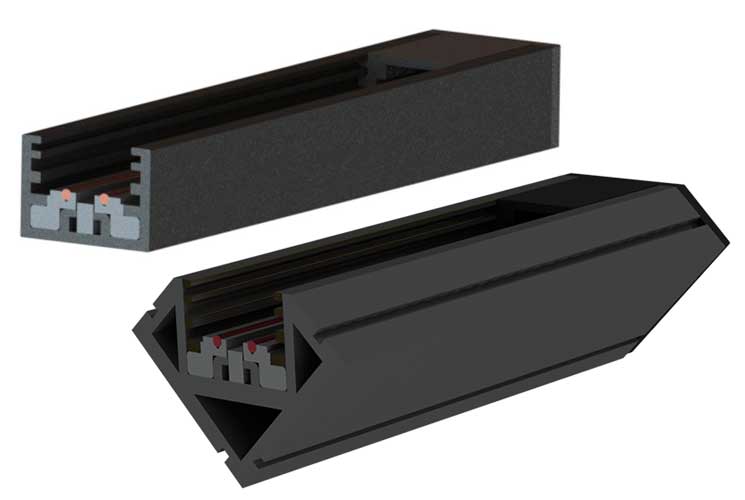

Manufactured from aluminium and finished in anodised black, we offer Attracta extusion in both surface (rectangular) and corner (triangular) profiles. We also manufacture mounting feet for both profiles and have 'C' clips which make surface mounting the track a simple process.

UFO ATTRACTA TRACK / GENERAL INFORMATION
Material	Aluminium
Available Finishes	Anodised black
Dimensions - Rectangular variant for surface mounting	Length: can be specified up to 2300mm Width: 20mm Height: 13.75mm
Dimensions - Triangular variant for corner mounting	Length: can be specified up to 2300mm Width: 36mm Height: 26mm
Electrical Details	Powered from one end using 5V DC PSU and driver unit Optional dimming functionality
Securing Method	Magnetic

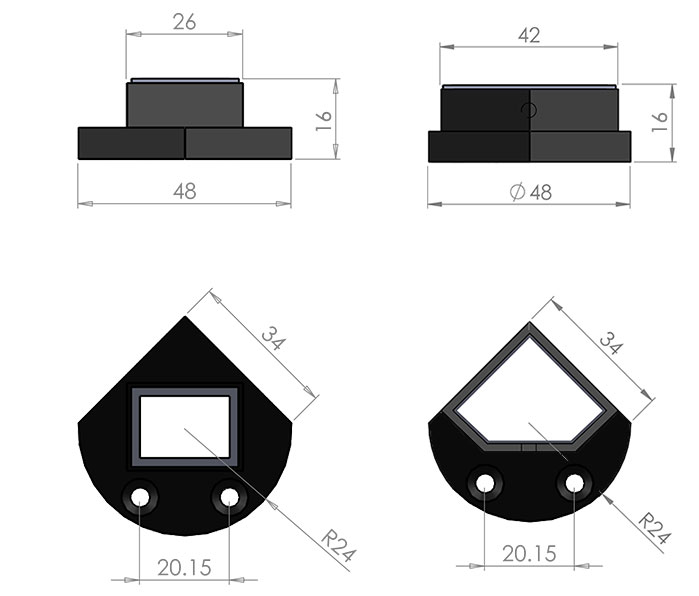

UFO ATTRACTA MOUNTING FEET / GENERAL INFORMATION
Material	Aluminium with plastic insert
Available Finishes	Black as standard

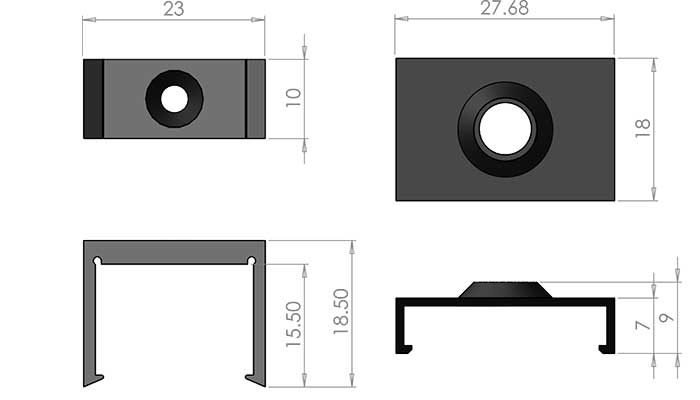

UFO ATTRACTA 'C' CLIPS / GENERAL INFORMATION
Material	Polycarbonate
Available Finishes	Black as standard

Attracta Driver & PSU Specifications

There are two power options for the Attracta magnetic track system.

Option 1

Direct connection to a 5V DC power supply in either 4 Amp or 6 Amp versions. This option has no dimming or control functionality. When this option is specified the system can be powered from either a 5VDC 4A multifunction plug top power supply or a 5VDC 6A desktop power supply with an IEC input.

Option 2

Functional connection driven by the UFO CV2 Constant Voltage driver which in turn is connected to a 12V DC power supply.

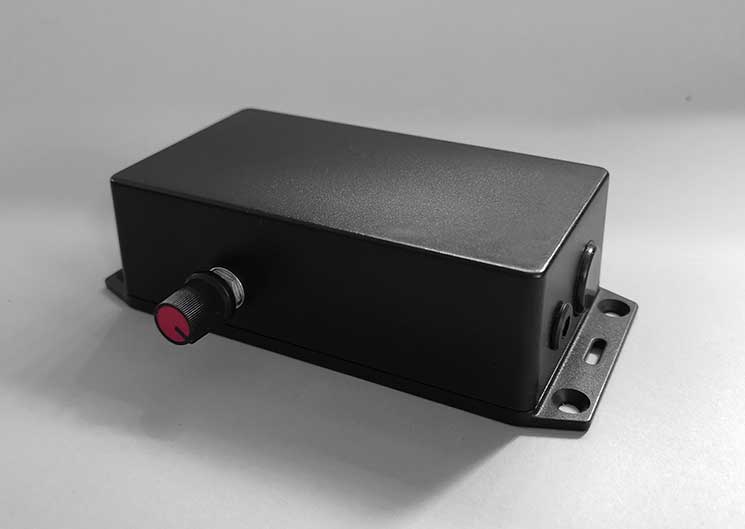

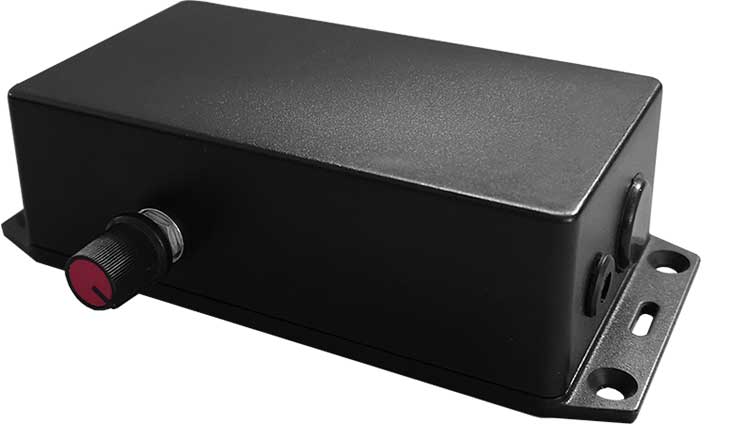

UFO CV2 DRIVER / TECHNICAL SPECIFICATIONS
Input Voltage	11 - 17V DC
Rated Power	30W maximum output
Output Voltage	5V DC (adjustable)
Protection	SCP / OCP / OTP
Functionality	2 channels individual manual (current sink) dimming with electronic potentiometer. 0-10V (current source) output dimming - controls both LED outputs. DMX with 4 channels (LED 1 dimming & on/off, LED 2 dimming & on/off). Controllable from DMX system or can operate standalone master/slave with other CV2 drivers. 2 channels (N/O & N/C) sensor input to trigger LED 1 & LED 2 output simultaneously with fade in, delay and fade out controls.
IP Rating	IP20 for indoor use only
Connection	Power - 2.1mm input jack Controls & outputs - screw terminals
Dimensions (W x L x H)	146mm x 68mm x 40mm (5.74" x 2.68" x 1.57")
Optional Accessories	Unidim CVD3 (DM-ELEC-XX-XX-XX-D) - single electronic (current sink) potentiometer Unidim CVD4 (DM-ELEC-XX-XX-XX-DD) - dual electronic (current sink) potentiometers Both CVD3 & CVD4 are supplied on mounting plates

Attracta System Ordering Codes

ATTRACTA F1 FITTING / ORDERING CODES	Click grey buttons to configure

Model Type

Optics

Colour Temp

Colour

Model Number:

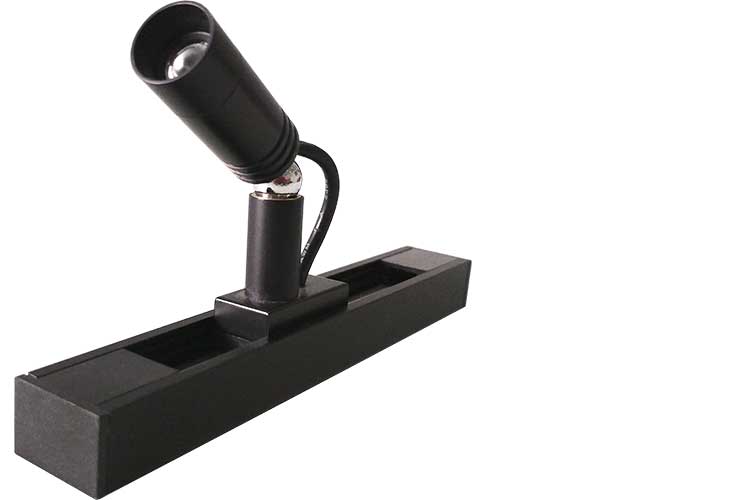

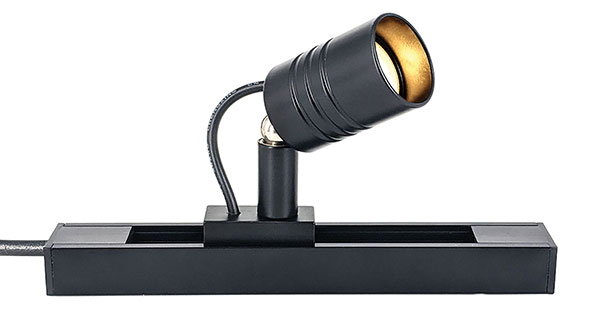

F1 fitting shown mounted in Attracta track.

ATTRACTA F2 FITTING / ORDERING CODES	Click grey buttons to configure

Model Type

Optics

Colour Temp

Colour

Model Number:

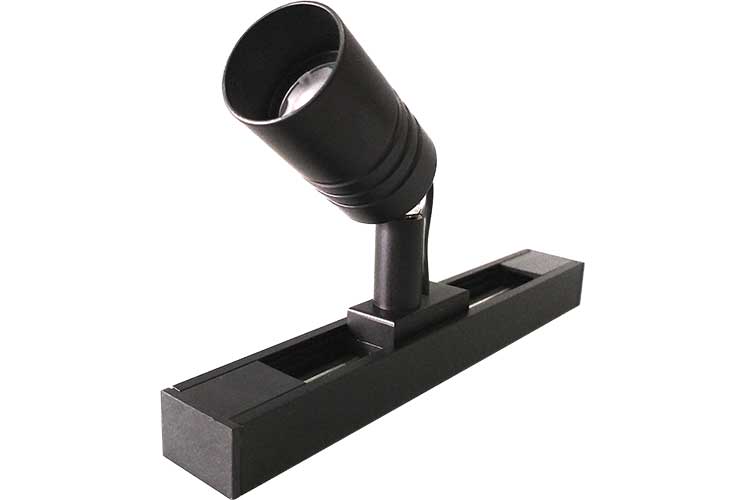

F2 fitting shown mounted in Attracta track.

ATTRACTA TRACK / ORDERING CODES	Click grey buttons to configure

Model Type

Length

Please state length in mm
Max length: 2300mm

Colour

PSU

Dimming Required?

Model Number:

ATTRACTA MOUNTING OPTIONS / ORDERING CODES	Click grey buttons to configure

Model Type

Functionality

Model Number:

ATTRACTA CV2 DRIVER / ORDERING CODES	Click grey buttons to configure

Model Type

Functionality

Model Number:
