LED Lighting Kit with LD3 Downlight

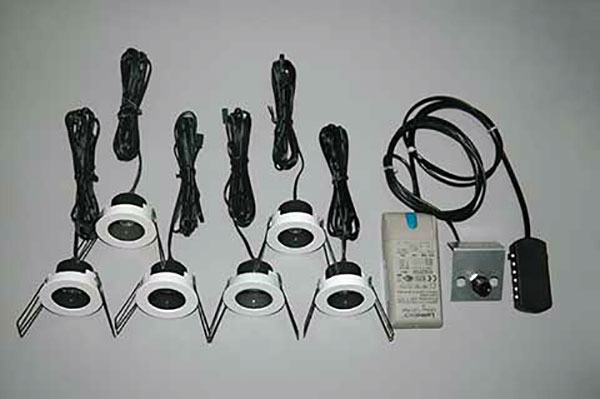

ld3 kit overview

Our LD3 LED lighting kits offer a quick and easy solution for lighting cabinets and display cases of all shapes and sizes.

This kit comes with a choice of color temperatures, high color rendition and narrow, medium and wide beam options to suit varying requirements.
Also included is a driver unit which allows you to control the overall dimming level of the lighting via a potentiometer which can be mounted in a standard 1 gang pattress box, a splitter box and 2.5 meters of cable for each fitting.
Whether you want to gently wash the interior of a cabinet or highlight specific areas or niches, it is achievable with the LD3.

Easy Installation

The LD3 fitting is easily installed in a variety of mounting surfaces and is held in place with two retaining springs which are not visible once the fitting is installed.
The fitting requires a 48mm (1.89") cutout in the mounting surface.
Once the holes are cut, you simply push the fittings into place, and the robust securing springs will snap into place. You then just connect their power cables to the splitter box and switch on.

UFO LD3 LED Downlight

The LD3 downlight utilises a Oslon LED, but unlike the LD1 and LD2, it carries the added benefit of being adjustable. The versatile fitting, which can tilt up to 27°, comes with a choice of narrow, medium and wide beam options to allow you to direct the light exactly where it is needed.
Available in a choice of two color temperatures with a high color rendition and multiple methods of dimming, the aluminum fitting is ideally suited for indoor use in residential and architectural sectors amongst others.
The downlight features a thin bezel of 54mm in diameter and can be supplied in a range of finishes and colours to complement almost any décor. Featuring a spring clip mounting system and narrow recess depth of 31mm, the LD3 can easily and quickly be installed in the shallowest of spaces.
ld3 image and cad

Note that dimensions are shown in mm

GENERAL INFORMATION
Color Temperature & CRI Options3000K @ 98CRI or 4000K @ 97CRI (typical)
Typical Luminous Flux
(based on 19° lens)		3000K: 65lm/W | 4000K: 72lm/W
Optics OptionsNarrow: 13.5° / Medium: 19° / Wide: 28°
Power Consumption1W per fitting
Voltage3.2V nominal
MaterialAluminum
Available Bezel FinishesBlack or silver
Operating EnvironmentIndoor
Securing MethodSecured through surface with spring clips. 48mm (1.89") cut out required.

Ordering Codes

No. of Fittings Bezel Color Ordering Code
4 x LD3 Black CLED-LD3-4B+[color temperature]+[lens][1]
4 x LD3 Silver CLED-LD3-4S+[color temperature]+[lens][1]
6 x LD3 Black CLED-LD3-6B+[color temperature]+[lens][1]
6 x LD3 Silver CLED-LD3-6S+[color temperature]+[lens][1]
8 x LD3 Black CLED-LD3-8B+[color temperature]+[lens][1]
8 x LD3 Silver CLED-LD3-8S+[color temperature]+[lens][1]
10 x LD3 Black CLED-LD3-10B+[color temperature]+[lens][1]
10 x LD3 Silver CLED-LD3-10S+[color temperature]+[lens][1]
12 x LD3 Black CLED-LD3-12B+[color temperature]+[lens][1]
12 x LD3 Silver CLED-LD3-12S+[color temperature]+[lens][1]
[1] Add color temperature and lens type to end of code (3K - 3000K / 4K - 4000K) and (WD - wide / ME - medium / NA - narrow). E.G. CLED-LD3-4B-3K-WD
