LED Lighting Kit with LD5 Downlight

ld5 kit overview

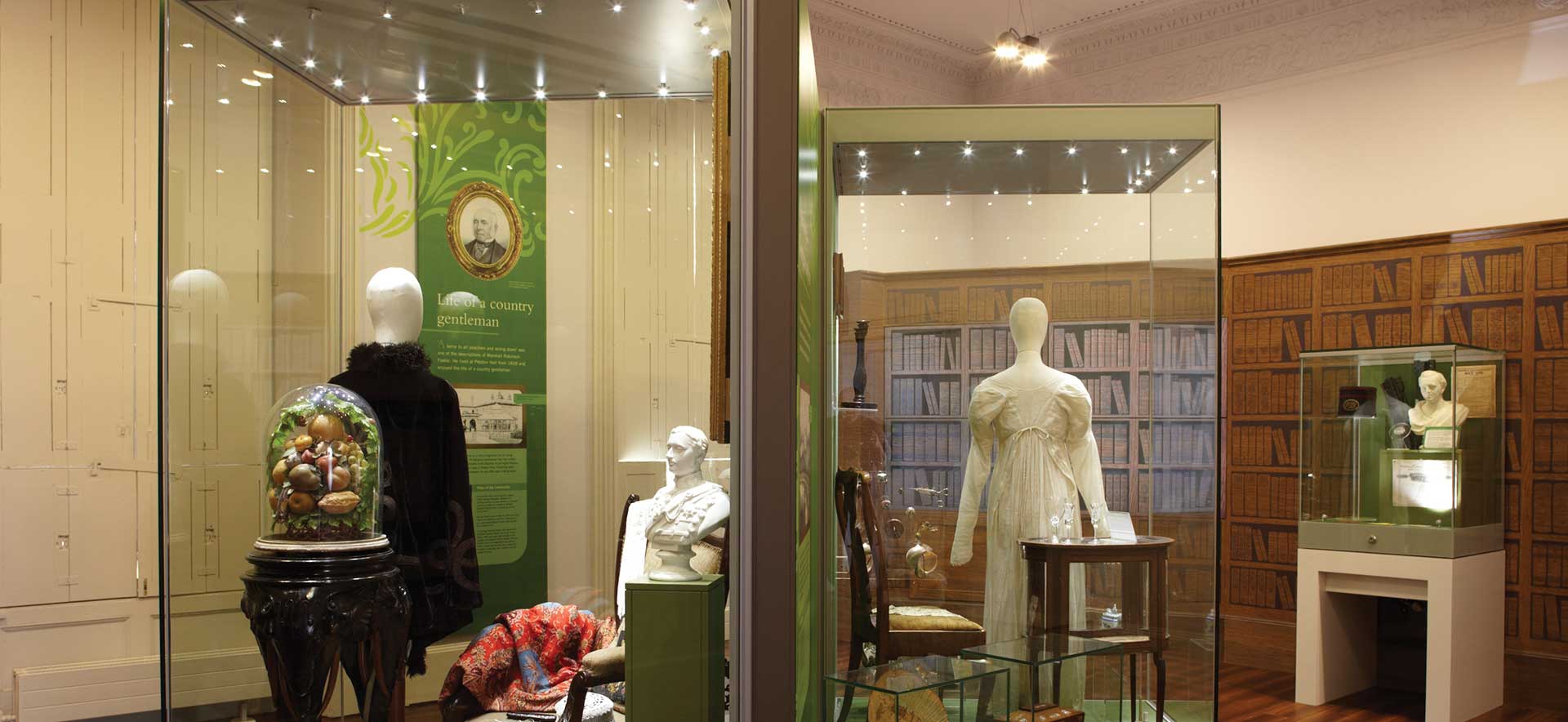

Our LD5 LED lighting kits offer a quick and easy solution for lighting cabinets and display cases of all shapes and sizes.

This kit features our best selling LD5 fitting which is fitted with an adjustable trumpet allowing the light to be directed exactly where it is needed.
Also included is a driver unit which allows you to control the overall dimming level of the lighting via a potentiometer which can be mounted in a standard 1 gang pattress box, a splitter box and 2.5 meters of cable for each fitting.

Easy Installation

The LD5 fitting is easily installed in a variety of mounting surfaces and is held in place with two retaining springs which are not visible once the fitting is installed.
The fitting requires a 34mm (1.34") cutout in the mounting surface.
Once the holes are cut, you simply push the fittings into place, and the robust securing springs will snap into place. You then just connect their power cables to the splitter box and switch on.

UFO LD5 LED Downlight

Supplied with a warm white or neutral white LED light and a CRI of >95 that ensures colours are shown in their true light, the LD5 is particularly useful for illuminating static objects within display cabinets and fixtures due to its adjustable nature.
Integral to the front of the fitting is a slim snoot that can tilt up to 35°, allowing you to focus a concentrated beam of light in almost any direction required, whilst reducing glare from the LED.
In addition to be being installed in ceilings, the aluminum fitting is also suitable for mounting in the base of display cabinets and projecting light upwards. It is supplied with a back nut to allow for secure installation in a recess and can be finished in either black or silver to match your display cabinet or décor requirements.
ld5 image and cad

Note that dimensions are shown in mm

GENERAL INFORMATION
Color Temperature & CRI Options3000K @ 98CRI or 4000K @ 97CRI (typical)
Typical Luminous Flux
(based on 23° lens)		3000K: 58lm/W | 4000K: 63lm/W
Optics23°
Power Consumption1W per fitting
Voltage3.2V nominal
MaterialAluminum
Available FinishesBlack or silver
Operating EnvironmentIndoor
Securing MethodSupllied with a backnut - 34mm (1.34") cutout required

Ordering Codes

No. of Fittings Bezel Color Ordering Code
4 x LD5 Black CLED-LD5-4B+[color temperature][1]
4 x LD5 Silver CLED-LD5-4S+[color temperature][1]
6 x LD5 Black CLED-LD5-6B+[color temperature][1]
6 x LD5 Silver CLED-LD5-6S+[color temperature][1]
8 x LD5 Black CLED-LD5-8B+[color temperature][1]
8 x LD5 Silver CLED-LD5-8S+[color temperature][1]
10 x LD5 Black CLED-LD5-10B+[color temperature][1]
10 x LD5 Silver CLED-LD5-10S+[color temperature][1]
12 x LD5 Black CLED-LD5-12B+[color temperature][1]
12 x LD5 Silver CLED-LD5-12S+[color temperature][1]
[1] Add color temperature to end of code (3K - 3000K / 4K - 4000K). E.G. CLED-LD5-4B-3K
