Fiber Optic Flex & Stay System

UFO flex and stay systems are terminations which are integral to the harness which are flexible but stay in position where pointed.

As detailed, 6 standard sizes of system are available, all in a chrome or black finish. We can also manufacture custom sizes to suit your application - please contact us with required dimensions for a quote.

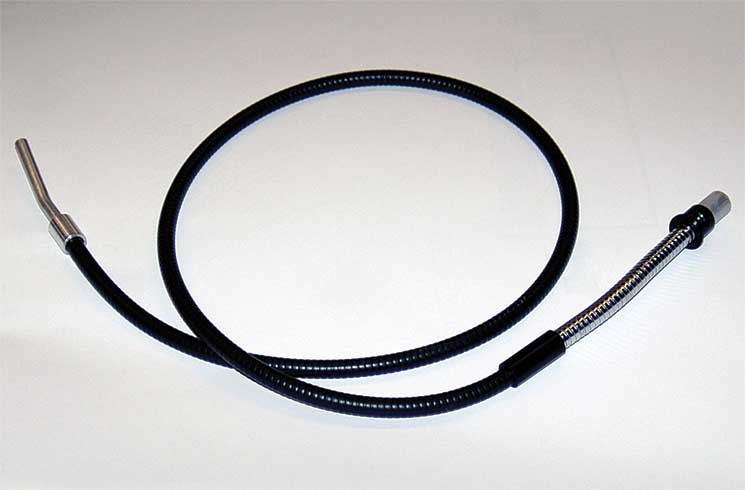

Standard flex and stays are fitted with either the UFO 25D or 26D trumpet and lens, however as shown in the photo above, we can also manufacture custom ends for use in light guide applications.
The flex and stay systems are suitable for indoor use only.
Matching mounting feet are also available and these are supplied pre-mounted onto the harness.
TECHNICAL INFORMATION
TrumpetUFO 25D or UFO 26D trumpet. Custom options also available
Focus RangeUFO 25D - 40° - 60° / UFO 26D - 25° - 45°C (113°F)
MaterialBrass & Aluminum
FinishBlack or chrome
WeightVaries depending on rod length and number of fittings
Mounting MethodMounting foot or hand held
Fiber Sizes4.5mm to 7mm
Product Code Length Flex Diameter* Active Diameter* Standard Lens
UFS-103-[lens]-[finish] 300mm (0.98ft) 11mm (0.43") 4.5mm (0.18") UFO25D or UFO26D
UFS-110-[lens]-[finish] 1000mm (3.28ft) 11mm (0.43") 4.5mm (0.18") UFO25D or UFO26D
UFS-203-[lens]-[finish] 300mm (0.98ft) 14mm (0.55") 6.0mm (0.24") UFO25D or UFO26D
UFS-210-[lens]-[finish] 1000mm (3.28ft) 14mm (0.55") 6.0mm (0.24") UFO25D or UFO26D
UFS-303-[lens]-[finish] 300mm (0.98ft) 15mm (0.59") 7.0mm (0.28") UFO25D or UFO26D
UFS-310-[lens]-[finish] 1000mm (3.28ft) 15mm (0.59") 7.0mm (0.28") UFO25D or UFO26D

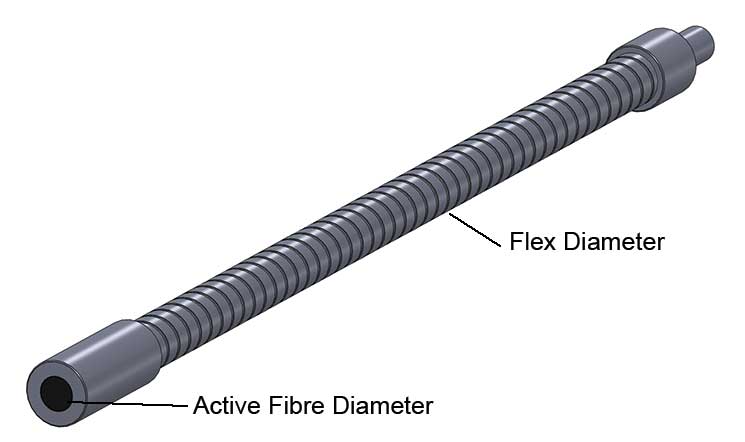

*See diagram, left, for dimension positions.
