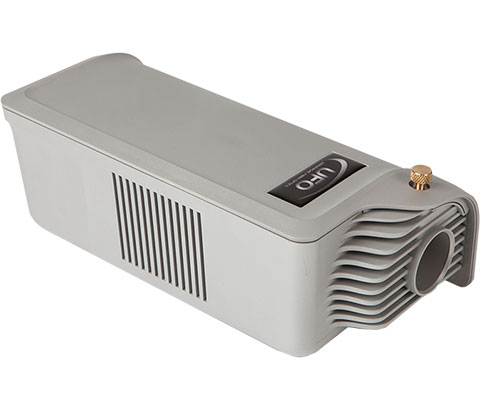

UFO Luna LED Illuminator
Powerful light output combined with cool and silent operation make this illuminator perfect for architectural lighting projects, both indoor and out.
The Luna illuminator features inbuilt DMX, 0-10V or manually controlled dimming. These units can be used in either standalone mode or can be connected in series and controlled with a standard DMX controller.
Available with either 3000K or 4000K color termperatures, and fitted with a standard 30mm fiber port connector, this illuminator is suitable for both new projects and retro-fitting to existing fiber optic installations.

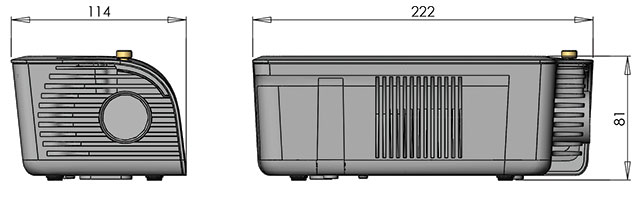

Note that dimensions are shown in mm
| GENERAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm diameter |
| Fiber Type | Glass / PMMA |
| Material / Finish | ABS - grey |
| Dimensions (L x W x H) | 222mm x 114mm x 81mm 8.74" x 4.5" x 3.2" |
| Weight | 0.99kg (2.18lb) |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10°C (14°F) |
| Max. Ambient Temperature | 45°C (113°F) |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Control Functionality | 0-10V / DMX / Manual Dimming |
| DMX Functionality | User addressable to 512 |
| DMX Channels | 1 channel |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | White light |
| LED Array Power | 11.5W |
| LED Array Model | Cree Xlamp - MC-E |
| LED Array Life (L70, B10) | >36,000 hours (typical) |
| 3000K LED Option | 80CRI / 550lm |
| 4000K LED Option | 80CRI / 550lm |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Supply Voltage | 90-264Vac |
| Mains Running Current | 0.09A @240Vac |
| Mains Voltage VA Rating | 19VA |
| External PSU Type | Meanwell, 24V, 0.75A, 18W |
| AVAILABLE ACCESSORIES | |
|---|---|
| MAS0403021R5 | Weatherproof enclosure |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
MODEL TYPE
COLOR TEMPERATURE
CONTROL
Model Number:
