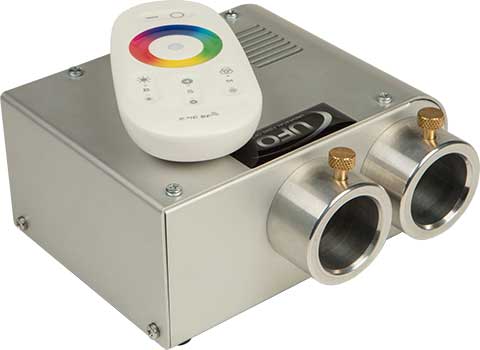

UFO MicroLED 2/3000 LED Illuminators

The UFO MicroLED 2000 & 3000 are dual output RGBW LED illuminators for fiber optic illumination.
The MicroLED 3000 features full DMX synchronisation and is supplied with an advanced RF remote control unit which features a multi-colour touch wheel allowing you to instantly switch to almost any color imaginable.
The MicroLED 2000 is a slave unit which can be connected in series to its more powerful parent and can be controlled via either the same remote control unit or by DMX.
Both models are equipped with twin fiber ports to allow two fiber harnesses to be connected to the units and illuminated simultaneously. Please note however that the twin ports are not independently operated.
Product Datasheet
MicroLED 2000 User Manual
MicroLED 3000 User Manual

GENERAL INFORMATION
Model Nos.UFO MIC2000 / UFO MIC3000
Port Connector SizeDual 30mm diameter
Fiber TypeGlass / PMMA
Material / FinishABS (black, silver or white)

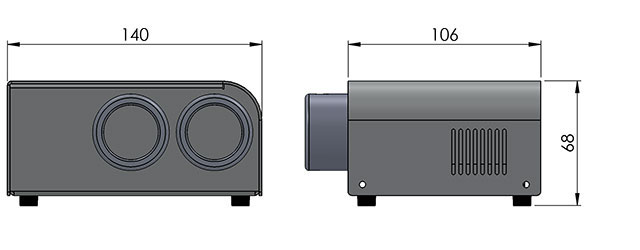

Dimensions (L x W x H)140mm x 106mm x 68mm
Weight0.6kg
Operating EnvironmentIndoor use - IP20
Min. Ambient Temperature-10°C (14°F)
Max. Ambient Temperature45°C (113°F)
LIGHTING & CONTROL INFORMATION
Control FunctionalityRemote and DMX
DMX FunctionalityAddressed to 1 (cannot be altered)
DMX Channels4 channels
Color Change FunctionalityRemote control and DMX
LED ARRAY DATA
LED Array TypeRGBW
LED Array Power2-5W
LED Array ModelCree XLamp MC-E
LED Array Life (L70, B10)> 50,000 hours @ 25°C
Wavelength and Luminous FluxRed: 625nm / 45lm
Green: 530nm / 93lm
Blue: 460nm / 12lm
White: 3500K / 120lm
ELECTRICAL CHARACTERISTICS
Supply Voltage90-264Vac
Mains Running Current0.06A @240Vac
Mains Voltage VA Rating14VA
External PSU TypePower Pax, 12V, 2A, 24W
RF REMOTE CHARACTERISTICS
RF Remote Frequency2.4GHz
RF Remote Range30m, depending on environment
RF Remote Power2 x AAA batteries (supplied)
AVAILABLE ACCESSORIES
MAS0302515R5Weatherproof enclosure
