RGBW LED Illuminators

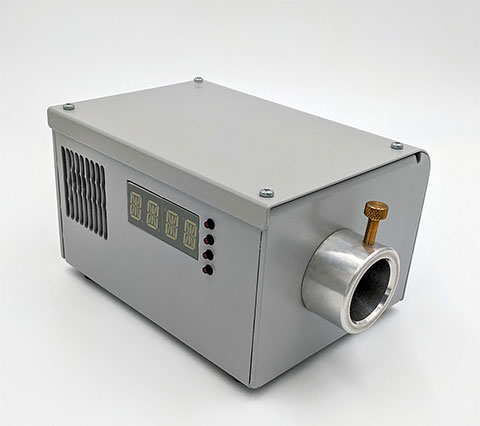

UFO Nova Mini Illuminator

As its name implies, the Nova Mini is an adapted version of our best selling RGBW LED illuminator, the Nova. The Mini is perfectly sized for use in our chandelier bases and in other spaces where available room is a limiting factor.
Utilising industry standard DMX to control the unit’s color change effects and the option to add an RF remote control, this is the perfect illuminator for powering decorative fiber optic effect lighting where a compact box is required.
A 50,000 hour lamp life and cool quiet running ensure that maintenance costs are reduced to almost nil.
Fitted with a standard 30mm fiber port connector, this illuminator is suitable for both new installations and retro-fitting to existing fiber optic installations.
Note that the Nova Mini is not fitted with a twinkle wheel.
GENERAL INFORMATION
Port Connector Size30mm diameter
Fiber TypeGlass / PMMA
Material / FinishAluminum, powdercoated grey (RAL9006)
Dimensions (L x W x H)183mm x 122mm x 100mm
7.2" x 4.8" x 3.94"
Weight1.1kg (2.42lb)
Operating EnvironmentIndoor use - IP20
Min. Ambient Temperature-10°C
Max. Ambient Temperature45°C
LIGHTING & CONTROL INFORMATION
Control FunctionalityDMX, manual push-button and remote control options
DMX AddressingUser addressable to 512
DMX Channels6 channels
Color Change FunctionalityControlled by DMX, manual push-button or remote control
Dimming FunctionalityControlled by DMX or remote control
LED ARRAY DATA
LED Array TypeCustom RGBW array
LED Array Power46W
LED Array ModelLuxeon 36 LED Array
LED Array Life (L70, B10)50,000 hours @ 25°C
White Color Temperature Options6500K
ELECTRICAL CHARACTERISTICS
Supply Voltage90-264Vac
Mains Running Current0.2A @240Vac
Mains Voltage VA Rating50VA
External PSU TypeMeanwell, 24V, 2.5A, 60W
Fan TypeSunon, 80mm, 22dBA
RF REMOTE CHARACTERISTICS
RF Remote Frequency2.4GHz
RF Remote Range30m, depending on environment
RF Remote Power2 x AAA batteries (supplied)
AVAILABLE ACCESSORIES
MAS0403021R5Weatherproof enclosure
