RGBW LED Illuminators

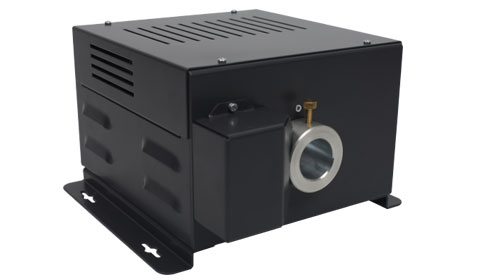

UFO Pulsar Illuminator

The UFO Pulsar DMX is a powerful 93W RGBW illuminator with full integral DMX, 0-10V, 1-10V, manual dimming and RF control making this illuminator capable of exceeding all expectations.
Utilising industry standard protocols to control the unit's color change effects, twinkle effects and dimming. This is the ultimate illuminator for illuminating fiber optic effect lighting when a crisp, controllable RGBW light is required.

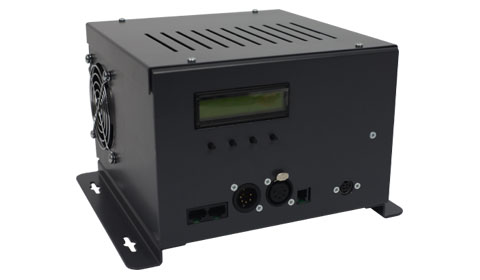

Features an LCD display which provides user feedback for ease of use. Fitted with a standard 30mm fiber port connector, this illuminator is suitable for both new installations and retro-fitting to existing fiber optic installations.
GENERAL INFORMATION
Port Connector Size30mm diameter
Fiber TypeGlass / PMMA
Material / FinishSheet steel, grey powdercoat (RAL7024)

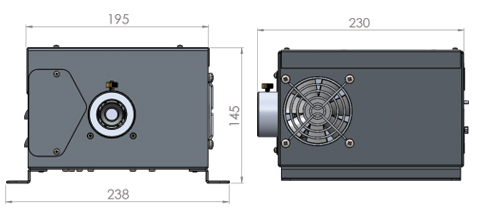

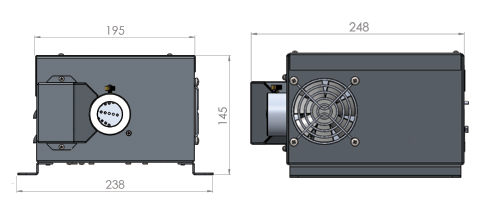

Dimensions (L x W x H)207mm x 236mm x 145mm
8.15" x 9.29" x 5.71"
Weight2.52kg (5.55lb)
Operating EnvironmentIndoor use - IP20
Min. Ambient Temperature-10°C (14°F)
Max. Ambient Temperature50°
LIGHTING & CONTROL INFORMATION
Decorative EffectsColor change & twinkle effect with full light option
Dimming ControlIntegral DMX, 0-10V, 1-10V and manual dimming
LED ARRAY DATA
LED Array TypeRGBW
LED Array PowerUp to 93W
LED Array Life50,000 hours (typical)
Base White Color Temperature6500K as standard
3000K & 4000K options subject to availability
Wavelength and Luminous FluxRed: 618nm / 1600lm
Green: 518nm / 3000lm
Blue: 450nm / 650lm
White: 4600lm
ELECTRICAL CHARACTERISTICS
Mains Supply Voltage100 - 250V AC, 50-60Hz
PSU TypeDesktop PSU with IEC power cord
PSU Output96W
Fan TypeCrossflow
Thermal ProtectionOn LED PCB thermistor
RF REMOTE CHARACTERISTICS
RF Remote Frequency2.4GHz
RF Remote Range30m (32.8yd), depending on environment
RF Remote Power2 x AAA batteries (supplied)
ORDERING CODES
UFO-PUL-S-DMXPulsar RGBW integral DMX, 0-10V, 1-10V & manual control
UFO-PUL-DMX-RPulsar RGBW integral DMX, 0-10V, 1-10V & manual control + RF remote
UFO-PUL-DMX-TPulsar RGBW integral DMX, 0-10V, 1-10V & manual control + twinkle wheel
UFO-PUL-DMX-T-RPulsar RGBW integral DMX, 0-10V, 1-10V & manual control + RF remote and twinkle wheel

Note that as standard these light sources are supplied with a 6500K base white array. If you require either the 3000K or 4000K option please contact us to confirm availability.
