UFO Lighting - RGBW Illuminators Comparision Table

RGBW LED Illuminators For Fiber Optic Lighting

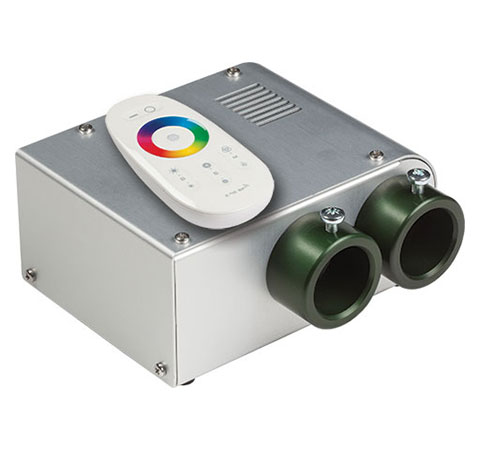

Untick to hide columns ->	Pulsar	Nova	Nova Mini	Nova Aqua	MicroLED 4000	MicroLED 1000	MicroLED 4000x2

Main Applications	Architectural, Decorative	Architectural, Decorative	Architectural, Decorative	Outdoor, Decorative	Sensory, Decorative	Sensory, Decorative	Sensory, Decorative
General Information
Port Connector Size	30mm diameter	30mm diameter	30mm diameter	30mm diameter	30mm diameter	30mm diameter	Dual 30mm diameter
Fiber type	Glass or PMMA	Glass or PMMA	Glass or PMMA	Glass or PMMA	Glass or PMMA	Glass or PMMA	Glass or PMMA
Material / Finish	Aluminum / Grey	Aluminum / Grey	Aluminum / Grey	Hard Anodised Aluminum	ABS / Black, White or Grey	ABS / Black, White or Grey	Aluminum / Anodised silver
Dimensions	207mm x 236mm x 145mm 8.15" x 9.3" x 5.7"	183mm x 178mm x 128mm 7.2" x 7.0" x 5.0"	183mm x 122mm x 100mm 7.2" x 4.8" x 3.9"	222mm x 240mm x 163mm 8.7" x 9.2" x 6.4"	137mm x 114mm x 73mm 5.4" x 4.5" x 2.9"	132mm x 98mm x 67mm 5.2" x 3.9" x 2.6"	140mm x 106mm x 68mm 5.5" x 4.2" x 2.7"
Weight	2.52kg / 5.55lb	1.91kg / 4.21lb	1.11kg / 2.42lb	4.44kg / 9.79lb	0.4kg / 0.88lb	0.3kg / 0.66lb	0.6kg / 1.32lb
Operating Environment	Dry area use only (Enclosure available for wet area use)	Dry area use only (Enclosure available for wet area use)	Dry area use only (Enclosure available for wet area use)	IP67 rated for wet area use	Dry area use only (Enclosure available for wet area use)	Dry area use only (Enclosure available for wet area use)	Dry area use only (Enclosure available for wet area use)
Min Ambient Temp	-10°C	-10°C	-10°C	-10°C	-10°C	-10°C	-10°C
Max Ambient Temp	50°C	45°C	45°C	50°C	45°C	45°C	45°C
Lighting & Control Information
Control Functionality	Integral DMX, 0-10V, manual and remote color change 0-10V, 1-10V, DMX, and manual dimming	DMX and manual	DMX and manual	DMX and manual	Remote control and push button manual color change	Push button manual color change	Manual, remote and DMX
DMX Functionality	User addressable to 512	User addressable to 512	User addressable to 512	User addressable to 512	Output to MicroLED 4000 Slave units only	N/A	Addressed to 1 (cannot be altered)
DMX Channels	6 Channel	6 Channel	6 Channel	6 Channels	N/A	N/A	4 Channels
Color Change Functionality	DMX, 0-10V, manual and remote control	DMX, manual & RF remote control	DMX, manual & RF remote control	DMX, manual & RF remote control	Remote control and push button	Push button	Manual, remote control and DMX
Effects Wheel Options & Functionality	Twinkle wheel controlled by 0-10V, DMX or manual operation	Twinkle wheel controlled by DMX or manual operation	N/A	Twinkle wheel controlled by DMX or manual operation	N/A	N/A	N/A
LED Array Data
LED Array Type	RGBW	RGBW	RGBW	RGBW	RGBW	RGBW	RGBW
LED Array Power	Up to 130W	46W	46W	46W	2-5W	2-5W	2-5W
LED Array Model	Tyanshine COB	Luxeon 36 LED Array	Luxeon 36 LED Array	Luxeon 36 LED Array	Cree XLamp MC-E	Cree XLamp MC-E	Cree XLamp MC-E
LED Array Life (L70,B10)	50,000 hours @ 25°C (typical)	50,000 hours @ 25°C (typical)	50,000 hours @ 25°C (typical)	50,000 hours @ 25°C (typical)	>50,000 hours @ 25°C (typical)	>50,000 hours @ 25°C (typical)	>50,000 hours @ 25°C (typical)
Lumen Outputs	Red - 1600lm / Green - 3000lm / Blue - 650lm / White - 4600lm	Red - 400lm / Green - 1160lm / Blue - 315lm / White - 1435lm	Red - 400lm / Green - 1160lm / Blue - 315lm / White - 1435lm	Red - 400lm / Green - 1160lm / Blue - 315lm / White - 1435lm	Red - 45lm / Green - 93lm / Blue - 12lm / White - 120lm	Red - 45lm / Green - 93lm / Blue - 12lm / White - 120lm	Red - 45lm / Green - 93lm / Blue - 12lm / White - 120lm
Electrical Characteristics
Supply Voltage	100 - 250VAC	90-264VAC	90-264VAC	90-264VAC	90-264VAC	90-264VAC	90-264VAC
Mains Running Current	0.6A @ 240VAC	0.2A @ 240VAC	0.2A @ 240VAC	0.2A @ 240VAC	0.06A @ 240VAC	0.03A @ 240VAC	0.06A @ 240VAC
Mains Voltage VA Rating	150VA	50VA	50VA	50VA	14VA	8VA	14VA
External PSU Type	Meanwell 48V, 160W	Meanwell, 24VDC, 2.5A, 60W	Meanwell, 24VDC, 2.5A, 60W	Meanwell, 24VDC, IP67, Type HL Driver	Power Pax, 12VDC, 2A, 24W	Power Pax, 12VDC, 2A, 24W	Power Pax, 12VDC, 2A, 24W
Motor Type	12V Stepper Motor	Rotalink 25C13/YS0LPSL3E 12V 60:1	Rotalink 25C13/YS0LPSL3E 12V 60:1	Rotalink 25C13/YS0LPSL3E 12V 60:1	N/A	N/A	N/A
Further Information
Notes	RF remote control option available with 30 metre (98ft) range. Base white color temperature is 6500K as standard. 3000K or 4000K versions available subject to availability,	RF remote control option available with 30 metre (98ft) range	RF remote control option available with 30 metre (98ft) range	RF remote control option available with 30 metre (98ft) range	RF remote control option available with 30 metre (98ft) range. Available in master and slave versions.	-	RF remote control option available with 30 metre (98ft) range. Available in master and slave versions. Twin ports work in unison and are not independently controlled.
