Sauna Star Lighting Kit
Kit Overview

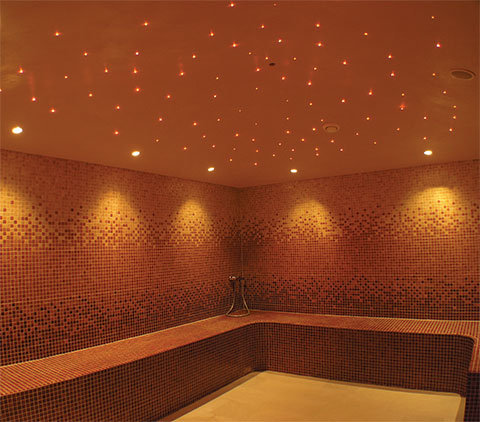

Give saunas, steam rooms and swimming pool ceilings the real wow factor with a star lighting kit from UFO.
The kits are easy to install and come complete with all the components you need to turn your ceiling space into a mesmerizing field of light.
Once installed you can sit back and relax under the twinkling white or colour-changing therapeutic lights.

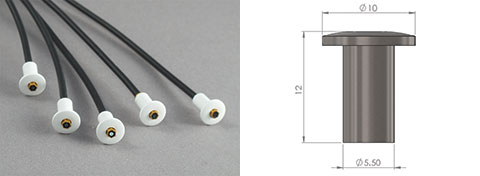

UFO Sauna Star Fittings
Kits are supplied with 100, 150 or 200 white polycarbonate fittings. Number supplied depends on the kit ordered.
The fitting diameter is 10mm (0.39") and they require a 6mm (0.24") cut out for installation.
Note that dimensions are shown in mm
Fiber Optic Harness
The harness is manufactured from 1mm diameter glass fiber to provide a safe and extra bright lighting effect.
Illuminator Options
Overview
MicroLED 100PT
MicroLED 100PC

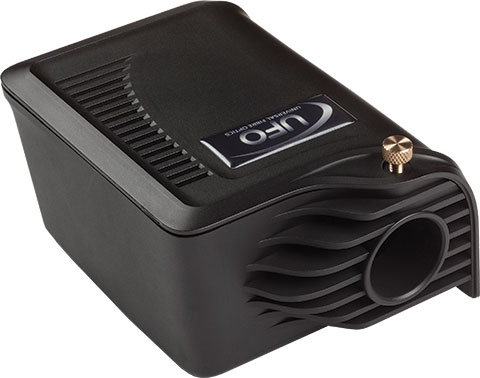

The MicroLED 100PT or MicroLED 100PC
Both models feature bright white light output and are fitted with a decorative wheel to provide lighting effects.
The MicroLED 100PT features a twinkle wheel which constantly rotates to provide a shimmering starry sky effect.
The MicroLED 100PC has an inbuilt color wheel which rotates slowly to give a gently coloured effect to the star points.
No user intervention is required with either of these units - just plug in and enjoy the lighting effects as you relax.
| GENERAL INFORMATION | |
|---|---|
| Model No. | UFO MIC100-PT |
| Port Connector Size | 30mm diameter |
| Fiber Type | Glass / PMMA |
| Material / Finish | ABS (black, silver or white) |
| Dimensions (L x W x H) | 132mm x 98mm x 67mm 5.4" x 4.49" x 2.87" |
| Weight | 0.3kg (0.79lb) |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10°C (14°F) |
| Max. Ambient Temperature | 45°C (113°F) |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Control Functionality | Manual control |
| Effects Wheel Functionality | Twinkle wheel |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | White Light |
| LED Array Power | 2W |
| LED Array Model | Cree XLamp XR-E |
| LED Array Life (L70, B10) | > 54,000 hours @ 25°C |
| Warm White Option | 3000K / 80CRI / 120lm |
| Neutral White Option | 4000K / 75CRI / 126lm |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Supply Voltage | 90-264Vac |
| Mains Running Current | 0.03A @240Vac |
| Mains Voltage VA Rating | 8VA |
| External PSU Type | Power Pax, 12V, 2A, 24W |
| GENERAL INFORMATION | |
|---|---|
| Model No. | UFO MIC100-PC |
| Port Connector Size | 30mm diameter |
| Fiber Type | Glass / PMMA |
| Material / Finish | ABS (black, silver or white) |
| Dimensions (L x W x H) | 132mm x 98mm x 67mm 5.4" x 4.49" x 2.87" |
| Weight | 0.3kg (0.79lb) |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10°C (14°F) |
| Max. Ambient Temperature | 45°C (113°F) |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Control Functionality | Manual control |
| Effects Wheel Functionality | Color wheel |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | White Light |
| LED Array Power | 2W |
| LED Array Model | Cree XLamp XR-E |
| LED Array Life (L70, B10) | > 54,000 hours @ 25°C |
| Warm White Option | 3000K / 80CRI / 120lm |
| Neutral White Option | 4000K / 75CRI / 126lm |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Supply Voltage | 90-264Vac |
| Mains Running Current | 0.03A @240Vac |
| Mains Voltage VA Rating | 8VA |
| External PSU Type | Power Pax, 12V, 2A, 24W |
Ordering Codes
| Fiber Tail Lengths & Sizes | End Fittings | Order Code (with MicroLED 100PT) | Order Code (with MicroLED 100PC) |
|---|---|---|---|
| 100 x 3 meter (9.84ft) length - 1mm glass fiber | 100 x white bezel fittings | SST-100-B | SSC-100-B |
| 150 x 4 meter (13.12ft) length - 1mm glass fiber | 150 x white bezel fittings | SST-150-B | SSC-150-B |
| 200 x 4 meter (13.12ft) length - 1mm glass fiber | 200 x white bezel fittings | SST-200-B | SSC-200-B |
