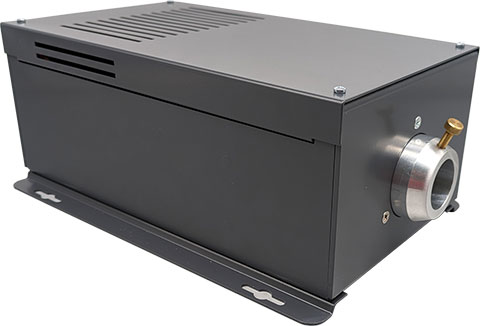

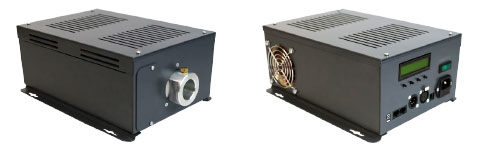

UFO Sirius S LED Illuminator
Introducing the Sirius S - an upgraded, more powerful and more efficient version of our best-selling Sirius illuminator.
For PMMA fiber applications, the Sirius S is the brightest illuminator in the UFO range. The enhanced technology in the Sirius S means it is much brighter than the original Quasar PMMA model.
High power output combined with a choice of popular color temperatures makes this illuminator suitable for multiple lighting tasks.
The Sirius S is dimmable via industry standard DMX, 0-10V or 1-10V controllers and also features an in-built manual dimming function for smaller scale installations.
We also offer a remote potentiometer dimming option which can be plugged into the illuminator. See the accessories section on this page for more information on this.

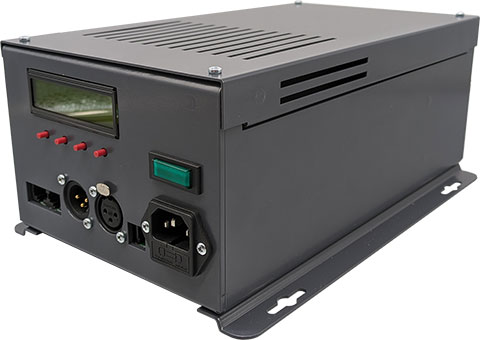

This new illuminator features an easy to use control panel complete with an LCD display - so selecting and setting control modes is simplified.
Fitted with a standard 30mm fiber connector, this unit is equally suited to new projects or for retro-fitting to existing fiber optic installations where a replacement or higher powered illuminator may be required.
Model for Glass Fibre
Model for PMMA Fibre
Model for Glass Fibre
Model for PMMA Fibre
| GENERAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm diameter |
| Fiber Type | Glass / PMMA |
| Material / Finish | Aluminum - powdercoated grey (RAL7024) |

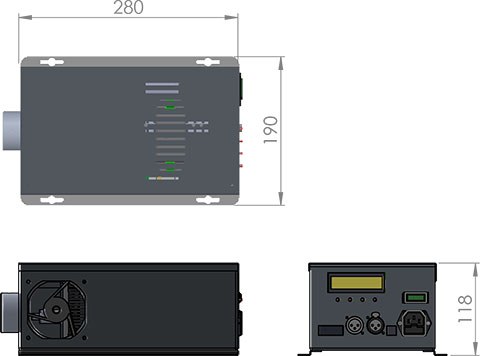

| Dimensions (L x W x H) for use with glass fiber optics | 280mm x 190mm x 118mm 11" x 7.48" x 4.65" |

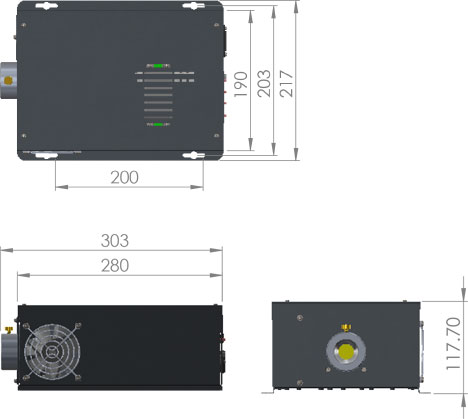

| Dimensions (L x W x H) for use with PMMA fiber optics | 280mm x 217mm x 117.7mm 11" x 8.54" x 4.65" |
| Weight | 2.89kg (6.37lb) |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10° |
| Max. Ambient Temperature | 45° |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Control Functionality | 0-10V / 1-10V / DMX / Manual Dimming Note that manual dimming is controlled by push buttons on the unit's body. See the accessories section below for a remote potentiometer option. |
| DMX Functionality | User addressable to 512 |
| DMX Channels | 2 channels |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | White light - 18mm LED CoB |
| LED Array Power | 75W |
| LED Array Model | Bridgelux V18 |
| LED Array Life (L70, B10) | >50,000 hours (typical) |
| LED ARRAY OPTIONS | ||
|---|---|---|
| 2200K | >80 CRI | 10117lm |
| 2700K | >80 CRI | 12517lm |
| 3000K | >80 CRI | 12772lm |
| 2200K | >90 CRI | 8211lm |
| 2700K | >90 CRI | 12113lm |
| 3000K | >90 CRI | 12361lm |
| 4000K | >90 CRI | 12608lm |
| For Lower CRI 4000K, as well as 5500K Options | Please see the original Sirius light source model which offers these CCT options | |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Supply Voltage | 100 - 305V AC |
| Mains Running Current | 0.4A @240V AC |
| Mains Voltage VA Rating | 92VA |
| Fan Type | Sunon 80mm - 28dBA |
| ACCESSORIES | |
|---|---|
| Remote Potentiometer Product Code: UFO SIRS-RPOT | A potentiometer mounted on flying lead of up to 5m length. This allows for manual dimming when the control panel is inaccessible. Note that when the flying lead is connected the RJ45 port the illuminator cannot be controlled by either DMX or 0-10V options. Can be supplied on a plate, as shown which allows for mounting in a standard 1 gang electrical box. Alternatively, at an addtional cost, it can be supplied in an enclosure. |
| |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
MODEL TYPE
COLOR TEMPERATURE
CRI
EFFECTS
Model Number:
