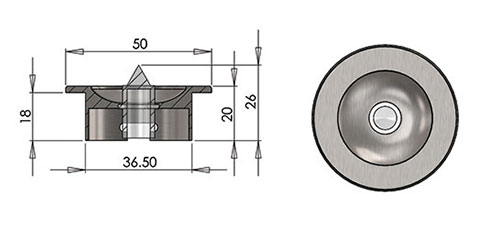

UFO 12D Sparkle Fitting

A large sparkle point with a recessed flange. Supplied with spring clips for securing through a ceiling.
Feature a large flange which is available in a range of materials and finishes.
TECHNICAL INFORMATION
LensClear bullet lens
MaterialAluminum or Polycarbonate
Available FinishesAluminum: black, white, chrome or natural
Polycarbonate: black, white
WeightAluminum: 26.6g (0.06lb)
Polycarbonate: 14.8g (0.03lb)
Mounting MethodRecessed, secured with springs
Mounting Hole Size40mm (1.57")
Ferrule Size8mm smooth
Fiber Sizes2mm (0.08") to 6mm (0.24")

CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Material

Finish

Ferrule

Model Number:
Product Datasheet
