UFO 13D Downlight Fitting
A recessed downlight fitting, secured through the mounting surface with spring clips.
Available in a range of finishes, the light beam from this fitting is also focusable.
Also suitable for mounting in the base of a display case and illuminating upwards.
316 stainless steel version is suitable for use in wet areas.

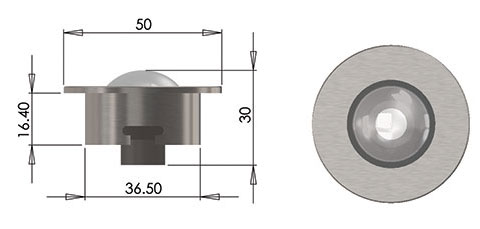

Note that dimensions are shown in mm
| TECHNICAL INFORMATION | |
|---|---|
| Lens | 26mm (1.02") domed clear focusing lens |
| Focus Range | 20° - 45°C (113°F) |
| Material | Aluminum, Stainless Steel or Polycarbonate |
| Available Finishes | Aluminum: black, white, chrome or natural Stainless Steel: natural Polycarbonate: black, white |
| Weight | Aluminum: 44.4g (0.1lb) Polycarbonate: 18.8g (0.04lb) Stainless steel: 106.4g (0.23lb) |
| Mounting Method | Recessed, secured with springs |
| Mounting Hole Size | 40mm (1.57") |
| Ferrule Size | M10 or 8mm smooth |
| Fiber Sizes | 2mm (0.08") to 8mm (0.32") |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
Model Type
Material
Finish
Ferrule
Model Number:
