UFO 9D Downlight Fitting
A mini adjustable downlight fitting with trumpet, secured through the mounting surface with spring clips.
Available in a range of finishes, this fitting can be rotated and tilted to point directly at any objects to be illuminated. The light beam from this fitting is also focusable.
Two trumpet and lens options allow for either wide or narrow angle light focus.

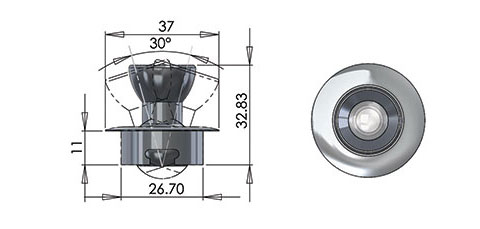

Note that dimensions are shown in mm
| TECHNICAL INFORMATION | |
|---|---|
| Lens | Available with both wide (18mm biconvex) and narrow (13mm domed) clear focusing lens |
| Focus Range | Wide angle lens: 70° - 120° Narrow angle lens: 25° - 65° |
| Material | Aluminum |
| Available Finishes | Natural aluminum, black, white or natural |
| Weight | 20.7g (0.05lb) |
| Mounting Method | Recessed, secured with springs |
| Ferrule Size | M8 |
| Fiber Sizes | 2mm (0.08") to 6mm (0.24") |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
Model Type
Material
Finish
Ferrule
Model Number:
