UFO LE2 DOWNLIGHT / GENERAL INFORMATION | |
---|---|
Illuminator | White Light LED |
Operating Environment | Indoor use only |
Material | Aluminum |
Available Finishes | Black or silver |

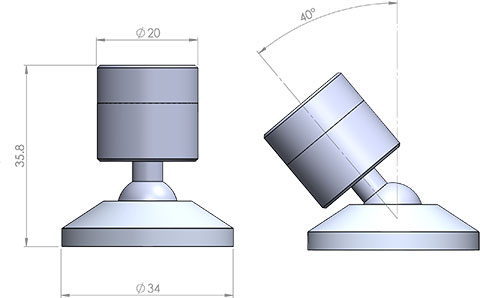

Dimensions | 34mm (1.34") Diameter x 35.8mm (1.41") Length |
Securing Method | Surface mount with screws |
UFO LE2 DOWNLIGHT / ARTICULATION | |
---|---|
Rotation | 360° |
Tilt | 40° |
UFO LE2 DOWNLIGHT / LED ARRAY DATA | |
---|---|
LED Type | Osram Oslon Square on 16mm Diameter PCB |
LED Life (L70, B10) | >50,000 Hours |
Fitting Drive Current | 350mA or 500mA |
Power Consumption | 1W @ 350mA / 1.5W @ 500mA |
Color Temperature Options | 3000K or 4000K |
CRI (typical) | 3000K: >98 4000K: >95 |
LED Luminous Efficacy | (based on 350mA driver) 3000K: 51lm/W 4000K: 54lm/W |
Driver Type | Constant Current LED Driver Required |
UFO LE2 DOWNLIGHT / OPTICS DATA | |
---|---|
Optics Family | Carclo |
Available Optics | 12° / 22° / 30° / 53° |
UFO LE2 DOWNLIGHT / DRIVER DIMMING OPTIONS | |
---|---|
Driver Specific | No Dimming 0-10V DALI DMX Mains Local Potentiometer Dimming Remote Potentiometer Dimming |
CONFIGURATIONS | Click the option buttons below to create the fitting model number |
---|
