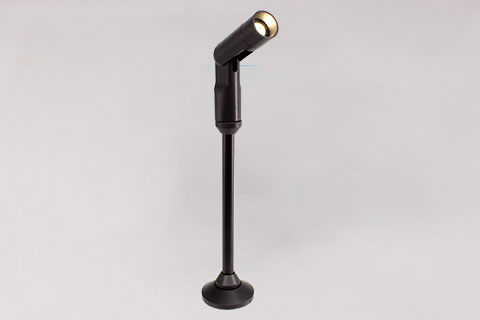

UFO LPV2 LED Downlight Fitting

Surface mount LED downlight fitting with stalk. Features free rotation and tilt. Stalk can be configured in a number of lengths from a short 80mm (3.15") to the longest 350mm (13.78").
The UFO LPV2 fitting features a sleek design and 360° rotation with 90° + 45° articulation in the pivot.
Available in a choice of color temperatures with high color rendition and a selection of optics, the fitting can be used to provide contemporary, functional lighting in any environment.
Product Datasheet
Quickstart Guide
UFO LPV2 DOWNLIGHT / GENERAL INFORMATION
IlluminatorWhite Light LED
Operating EnvironmentIndoor use only
MaterialAluminum
Available FinishesBlack or silver

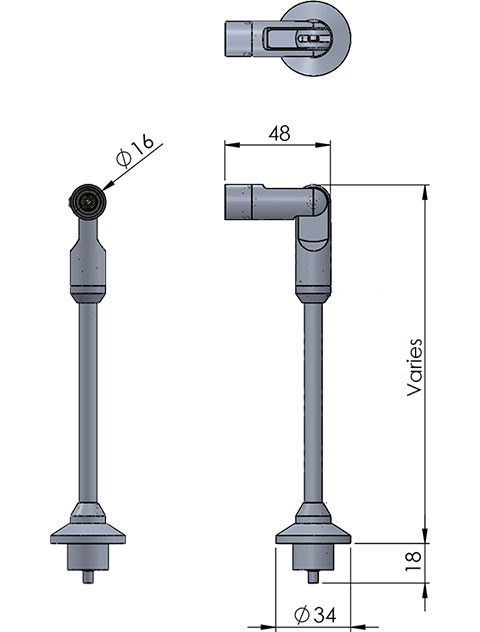

Dimensions34mm (1.34") Diameter x 52.6mm (2.07") Length
Securing MethodSurface mount with screws
UFO LPV2 DOWNLIGHT / ARTICULATION
Rotation360°
Tilt90° + 45°
UFO LPV2 DOWNLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square on 16mm Diameter PCB
LED Life (L70, B10)>50,000 Hours
Fitting Drive Current350mA or 500mA
Power Consumption1W @ 350mA / 1.5W @ 500mA
Color Temperature Options2700K, 3000K or 4000K
CRI (typical)2700K: >95
3000K: >96
4000K: >95
LED Luminous Efficacy(based on 350mA driver)
2700K: 75lm/W
3000K: 77lm/W
4000K: 80lm/W
Driver TypeConstant Current LED Driver Required
UFO LPV2 DOWNLIGHT / OPTICS DATA
Optics FamilyCarclo
Available Optics16° / 23° / 36° / 61°
UFO LPV2 DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Color Temp

Finish

Stalk Length

Model Number:
Notes:
Please state RAL number for custom color
