UFO P1 Paver Fitting

A round walkover paver manufactured from stainless steel and available with either clear or frosted glass.
The clear glass option gives greater light output and also allows the light to travel further whilst the frosted glass creates more of a marker light effect.
Manufactured from 316 stainless steel for a long lifespan.

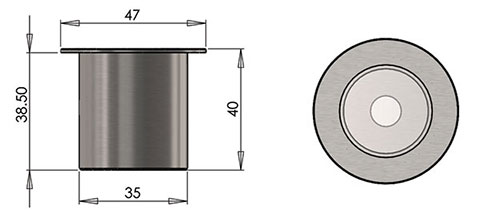

TECHNICAL INFORMATION
Glass30mm (1.2") clear or frosted flat lens
Beam Angle65°
Material316 stainless steel
Available FinishesNatural stainless steel
Weight180g (0.4lb)
Mounting Hole Size38mm (1.5") diameter
Ferrule SizesM10 or 8mm smooth
Fiber Sizes2mm (0.08") to 8mm (0.32") diameter
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Glass Type

Ferrule Type

Model Number:
Product Datasheet
Installation Guide
