UFO P19 Paver Fitting

A round walkover paver manufactured from stainless steel with clear glass front and internal domed lens.
This paver allows for installation in a walkover situation while also allowing the light beam to be focused. The clear glass front gives greater light output and also allows the light to travel further.
Manufactured from 316 stainless steel for a long lifespan.

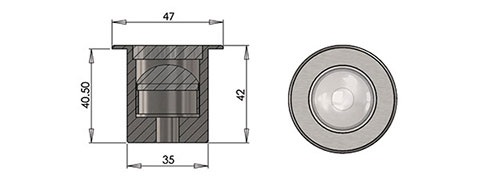

TECHNICAL INFORMATION
Glass30mm (1.2") clear with 26mm (1.02") internal biconvex lens
Beam Angle40° - 75°
Material316 stainless steel
Available FinishesNatural stainless steel
Weight197.3g (0.43lb)
Mounting Hole Size36mm (1.42") diameter
Ferrule SizesM10 or 8mm smooth
Fiber Sizes2mm (0.08") to 8mm (0.32") diameter
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Glass Type

Ferrule Type

Model Number:
Product Datasheet
Installation Guide
