UFO P2 Paver Fitting
A round paver with a domed lens manufactured from stainless steel with either clear or frosted glass. The use of domed glass means that the light output from this paver is focusable.
The clear glass option gives greater light output and also allows the light to travel further whilst the frosted glass creates more of a marker light effect.
Manufactured from 316 stainless steel for a long lifespan.

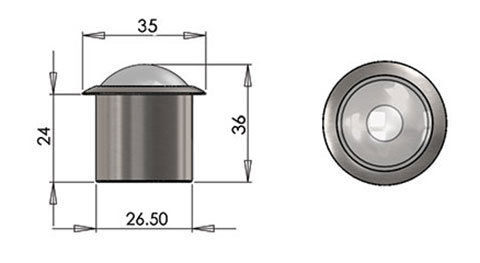

Note that dimensions are shown in mm
| TECHNICAL INFORMATION | |
|---|---|
| Glass | 26mm (1.02") domed clear or frosted |
| Beam Angle | 20° - 40° |
| Material | 316 stainless steel |
| Available Finishes | Natural stainless steel |
| Weight | 80g (0.18lb) |
| Mounting Hole Size | 27mm (1.06") diameter |
| Ferrule Sizes | M10 or 8mm smooth |
| Fiber Sizes | 2mm (0.08") to 8mm (0.32") diameter |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
Model Type
Glass Type
Ferrule Type
Model Number:
