UFO P20 Paver Fitting

A round walkover paver manufactured from stainless steel with clear glass front and internal adjustable lens.
Suitable for use in walkover situations. A separate internal lens allows for the light beam to be focused.
Manufactured from 316 stainless steel for a long lifespan.

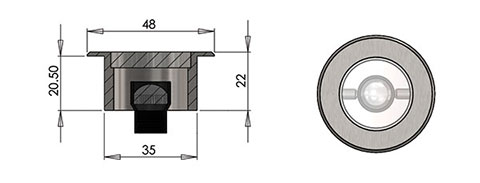

TECHNICAL INFORMATION
Glass30mm (1.2") clear glass with internal 13mm (0.51") tiltable domed lens which can be either clear or frosted
Beam Angle40° - 60°
Material316 stainless steel
Available FinishesNatural stainless steel
Weight84.2g (0.19lb)
Mounting Hole Size36mm (1.42") diameter
Ferrule SizesM10 or 8mm smooth
Fiber Sizes2mm (0.08") to 8mm (0.32") diameter
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Glass Type

Internal Lens Type

Ferrule Type

Model Number:
Product Datasheet
Installation Guide
