Paver End Fittings For Fiber Optics

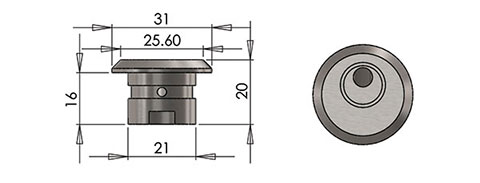

UFO P22 Paver Fitting

A small round paver manufactured from stainless steel with clear glass which is designed to be used with a 6mm smooth ferrule.
The ferrule is fitted to the paver at a 30 degree angle which allows the light to be guided diagonally. A M3 grub screw is used to secure the ferrule in place.
Manufactured from 316 stainless steel for a long lifespan.
Please note: this fitting is made to order only. Delivery will be subject to an extended lead time and price will be dependant on the quantity ordered.
TECHNICAL INFORMATION
Glass13.85mm (0.55") clear
Beam Angle54°
Material316 stainless steel
Available FinishesNatural stainless steel
Weight46.6g (0.1lb)
Mounting Hole Size22mm (0.87") diameter
Ferrule Sizes6mm smooth
Fiber Sizes2mm (0.08") to 5mm (0.16) diameter
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Glass Type

Ferrule Type

Model Number:
