UFO S1 Sparkle Fitting

A flanged sparkle point fitting which is available in plastic for indoor use or stainless steel for outdoor use.
This fitting is popular with signmakers and for ease of installation in ceilings.
As an optional extra, we can supply accessory tubes which allow mounting these fittings through single or double skinned ceilings. These are available in 25mm, 80mm or 135mm lengths.

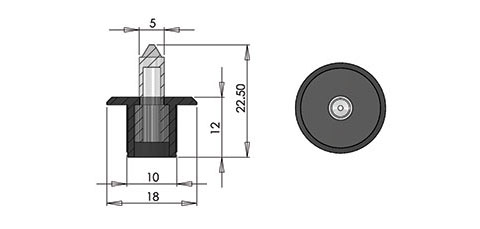

TECHNICAL INFORMATION
MaterialClear polycarbonate lens with polycarbonate black, white or chrome or natural stainless steel flange.
Stainless steel flange is a special order item only and is subject to extended lead times.
Weight1.2g (0.003lb) (polycarbonate flange)
Mounting MethodPush fit
Mounting Hole Size10mm (0.39")
Ferrule SizeSize 1 crimp ferrule
Fiber Sizes1mm active diameter
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Flange

Flange Color

Model Number:
Product Datasheet
