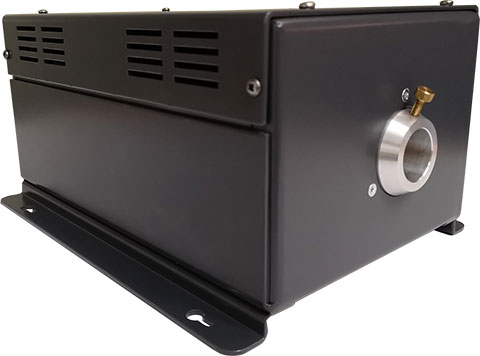

UFO Quasar LED Illuminator
The UFO Quasar LED. Extremely high powered light output and full DMX , 0-10V, 1-10V and manual control make this an LED illuminator unparalleled in its light output and control capabilities.
Utilises industry standard protocols to control the unit's dimming effects. This is the ultimate illuminator for illuminating fiber optic effect lighting when a crisp, controllable white light is required.
Features an LCD display which provides user feedback for ease of use.
Available in a range of color temperatures and in both >80CRI and >90 CRI versions.
Fitted with a standard 30mm fiber port connector, this illuminator is suitable for both new installations and retro-fitting to existing fiber optic installations.
The Quasar illuminator is only suitable for illuminating glass fiber. For PMMA fiber applications we recommend using the newer Sirius S. The enhanced technology in the Sirius S gives much brighter light output than the original Quasar PMMA model.

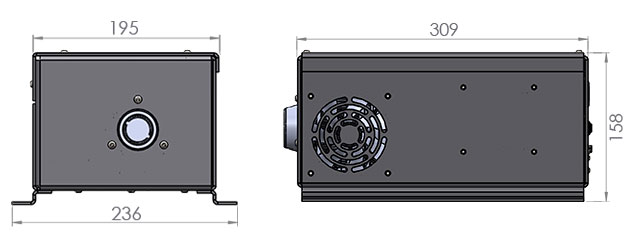

Note that dimensions are shown in mm
| GENERAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm diameter |
| Fiber Type | Glass Only The Quasar White Light is not suitable for PMMA fiber - please use the newly designed Sirius S illuminator which provides greater light output when illuminating PMMA fiber. |
| Material / Finish | Aluminum, grey powdercoat (RAL7200) |
| Dimensions (L x W x H) | 309mm x 236mm x 158mm 12.16" x 9.29" x 6.22" |
| Weight | 3.96kg (8.73lb) |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10°C (14°F) |
| Max. Ambient Temperature | 45°C (113°F) |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Control Functionality | 0-10V / 1-10V / DMX / Manual Dimming |
| DMX Functionality | User addressable to 512 |
| DMX Channels | 2 channels |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | White light |
| LED Array Power | 150W |
| LED Array Model | CLU048-1818-C4 |
| LED Array Life (L70, B10) | 50,000 hours (typical) |
| STANDARD CRI (>80) OPTIONS (Note that all lumen values are taken using glass fibre) | ||
|---|---|---|
| 3000K: 17974lm | 4000K: 18438lm | 5000K: 18653lm |
| 5700K: 18840lm | 6500K: 18992lm |
| HIGH CRI (>90) OPTIONS (Note that all lumen values are taken using glass fibre) | ||
|---|---|---|
| 2700K: 14805lm | 3000K: 15400lm | 4000K: 15633lm |
| 5700K: 16174lm |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Supply Voltage | 90-305Vac |
| Mains Running Current | 0.8A @240Vac |
| Mains Voltage VA Rating | 186VA |
| Fan Type | Sunon 92mm - 32dBA |
| AVAILABLE ACCESSORIES | |
|---|---|
| MAS0504026R5 | Weatherproof enclosure |
| UFO Unidim CVD1 | Remote manual dimmer with plate |
| UFO Unidim CVD3 | Remote current sink dimmer with plate |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
MODEL TYPE
COLOR TEMPERATURE & CRI
EFFECTS
Model Number:
