UFO 10D Downlight Fitting
An adjustable downlight fitting with trumpet, secured through the mounting surface with spring clips.
Available in a range of finishes, this fitting can be rotated and tilted to point directly at any objects to be illuminated. The light beam from this fitting is also focusable.
Also suitable for mounting in the base of a display case and illuminating upwards.

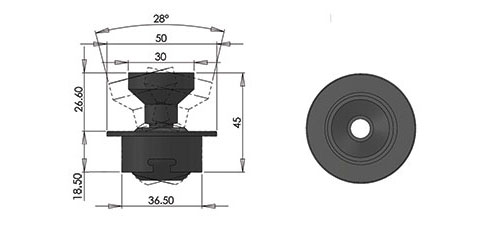

Note that dimensions are shown in mm
| TECHNICAL INFORMATION | |
|---|---|
| Lens | 26mm (1.02") domed clear focusing lens |
| Focus Range | 25° - 45°C (113°F) |
| Rotation & Tilt | 360° rotation / 28° tilt |
| Material | Aluminum, Stainless Steel or Polycarbonate |
| Available Finishes | Aluminum: black, white, chrome or natural Stainless Steel: natural Polycarbonate: black, white |
| Weight | Aluminum: 57.4g (0.13lb) Stainless Steel: 140.7g (0.31lb) Polycarbonate: 28.1g (0.06lb) |
| Mounting Method | Recessed, secured with springs |
| Mounting Hole Size | 40mm (1.57") |
| Ferrule Size | M10 or 8mm smooth |
| Fiber Sizes | 2mm (0.08") to 8mm (0.32") |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
Model Type
Material
Finish
Ferrule
Model Number:
