UFO 13DA Downlight Fitting
A recessed downlight fitting with a smooth flange, secured through the mounting surface with spring clips.
Available in a range of finishes, the light beam from this fitting is also focusable.
Also suitable for mounting in the base of a display case and illuminating upwards.
316 stainless steel version is suitable for use in wet areas and is special order only so is subject to extended lead times.

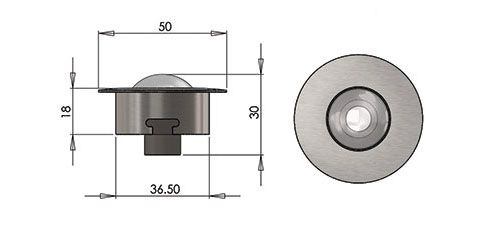

Note that dimensions are shown in mm
| TECHNICAL INFORMATION | |
|---|---|
| Lens | 26mm (1.02") domed clear focusing lens |
| Focus Range | 20° - 45°C (113°F) |
| Material | Aluminum or Stainless Steel |
| Available Finishes | Aluminum: black, white or natural Chrome available subject to availability Stainless Steel: natural |
| Weight | Aluminum: 44.4g (0.1lb) |
| Mounting Method | Recessed, secured with springs |
| Mounting Hole Size | 40mm (1.57") |
| Ferrule Size | M10 or 8mm smooth |
| Fiber Sizes | 2mm (0.08") to 8mm (0.32") |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
Model Type
Material
Finish
Ferrule
Model Number:
