UFO 20D Downlight Fitting
A small adjustable downlight fitting with trumpet, secured through the mounting surface with spring clips.
Available in a range of finishes, this fitting can be rotated and tilted to point directly at any objects to be illuminated. The light beam from this fitting is also focusable.
Also suitable for mounting in the base of a display case and illuminating upwards.

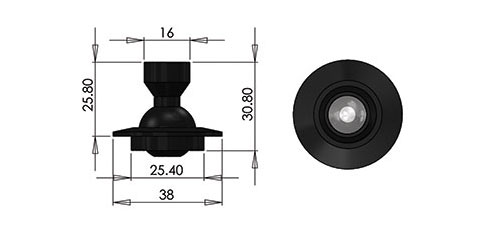

Note that dimensions are shown in mm
| TECHNICAL INFORMATION | |
|---|---|
| Lens | 13mm (0.51") domed clear focusing lens |
| Focus Range | 15° - 30° |
| Rotation | 360° |
| Tilt | 60° |
| Material | Aluminium or Stainless Steel* |
| Available Finishes | Black, white, natural or chrome* |
| Weight | 24.5g (0.05lb) |
| Mounting Method | Recessed, secured with springs |
| Mounting Hole Size | 30mm |
| Ferrule Size | M7 |
| Fiber Sizes | 2mm (0.08") to 4.5mm (0.18") |
*Stainless steel material & chrome finish are special order only with additional costs and extended lead times.
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
Model Type
Material
Finish
Ferrule
Model Number:
