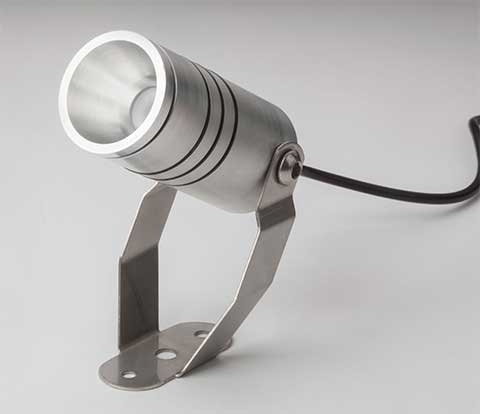

UFO LB1 LED Spotlight Fitting

As one of our more flexible LED fittings, the LB1 features full vertical articulation, to allow you to navigate the light stream in almost any direction required.
It is suitable for use in all manner of indoor and outdoor applications, from the illumination of fountains and statues to commercial facades and residential landscaping.

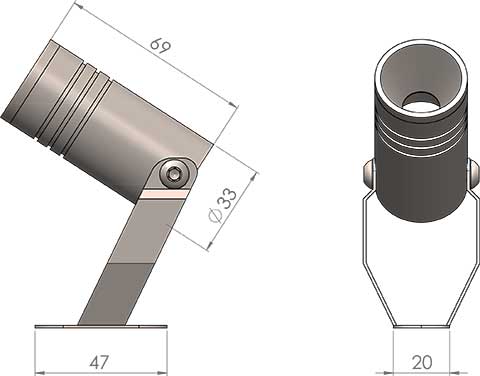

The versatile fitting can be manufactured in anodised aluminum or 316 stainless steel for added durability, and consists of a bezel of 33mm (1.3") in diameter and 69mm (2.71") in length. It comes mounted on a screw down foot, but can also be supplied with a spike to allow for easy installation in soft ground.
Available with a choice of color temperatures and optics, the LB1 can be specified with dimming functionality and finished in a range of coatings and colours to suit varying requirements.
Product Datasheet
UFO LB1 DOWNLIGHT / GENERAL INFORMATION
IlluminatorWhite Light LED
Operating EnvironmentSuitable for indoor or outdoor use
MaterialHard anodised aluminum
Available FinishesBlack, Silver or Custom RAL
Dimensions33mm (1.3") Diameter x 69mm (2.71") Body length
Securing MethodSurface mount with supplied bracket
UFO LB1 DOWNLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square on 20mm Diameter PCB
LED Life (L70, B10)>50,000 Hours
Fitting Drive Current350mA/td>
Power Consumption1W @ 350mA
Color Temperature Options2700K, 3000K, 4000K, 5700K
CRI (typical)2700K: >98
3000K: >98
4000K: >95
5700K: >91
LED Luminous Efficacy(based on 13.5° lens and 350mA driver)
2700K: 54lm/W
3000K: 57lm/W
4000K: 63lm/W
5700K: 86lm/W
Driver TypeConstant Current LED Driver Required
UFO LB1 DOWNLIGHT / OPTICS DATA
Optics FamilyCarclo
Available Optics13.5° / 19° / 28°
UFO LB1 DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Color Temp

Finishes

Color

Model Number:
Notes:
Please state color for custom aluminum finish.
