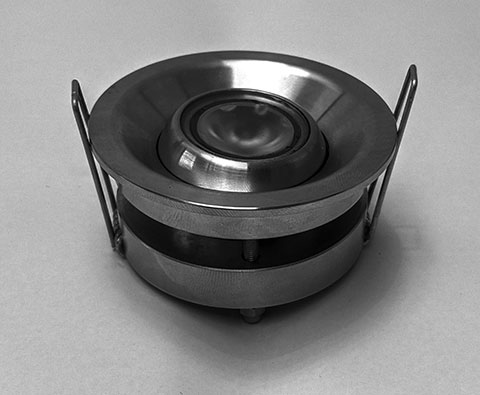

UFO LD10 LED Downlight Fitting

An IP66 rated recessed downlight with a lockable eyeball which is held in place with spring clips.
The UFO LD10, which has a lockable, tilting eyeball which offers up to 107° adjustment, comes with a choice of narrow, medium and wide beam options to allow you to direct the light exactly where it is needed. Fitted with springs to allow easy installation into the mounting surface.
Available in a range of color temperatures with a high color rendition and multiple methods of dimming, the aluminum fitting is ideally suited for indoor use in residential and architectural sectors amongst others.
Product Datasheet
UFO LD10 DOWNLIGHT / GENERAL INFORMATION
IlluminatorWhite Light LED
Operating EnvironmentIP66 rated. Can be used indoors or in wet/damp locations
Material316 Stainless Steel
Available FinishesFlange and body can each be chosen from natural stainless steel, black or custom RAL colour

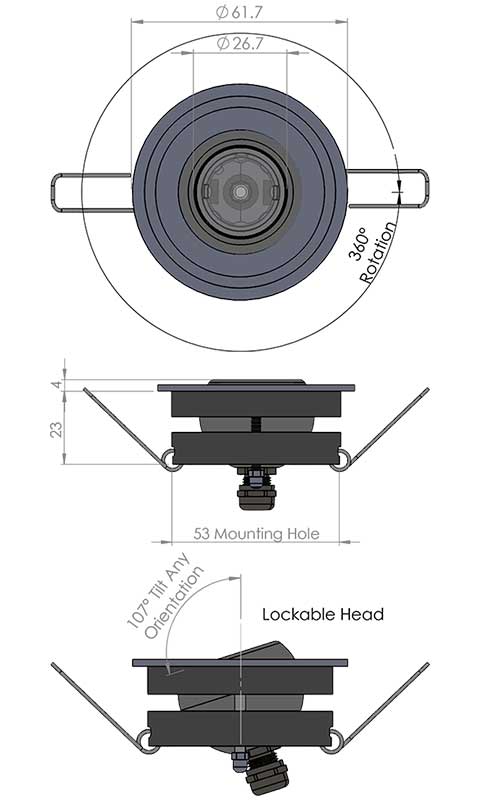

Dimensions61.7mm (2.43") Diameter x 27mm (1.06") Length, not including gland
Securing MethodSecured through surface with springs
UFO LD10 DOWNLIGHT / ARTICULATION
Rotation360°
Tilt107° with lockable head
UFO LD10 DOWNLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square on 20mm Diameter PCB
LED Life (L70, B10)>54,000 Hours
Fitting Drive Current350mA
Power Consumption1W @ 350mA
Color Temperature Options2700K, 3000K, 4000K, 5700K
CRI (typical)2700K: >97
3000K: >98
4000K: >96
5700K: >91
LED Luminous Efficacy(based on 19° lens and 350mA driver)
2700K: 67lm/W
3000K: 65lm/W
4000K: 72lm/W
5700K: 89lm/W
Driver TypeConstant Current LED Driver Required
UFO LD10 DOWNLIGHT / OPTICS DATA
Optics FamilyCarclo
Available Optics13.5° / 19° / 28°
UFO LD10 DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Color Temp

Flange

Eyeball

Model Number:
Notes:
Please state RAL number for custom colours
