UFO LP6 LED Paver Fitting

With an extended barrel measuring 47mm (1.85")in length, the LP6 is the ideal fitting for applications where a deep recess exists.
Manufactured from either aluminum, in a variety of finishes, or 316 stainless steel for added durability, the paver is well suited for indoor or outdoor environments where passing footfall is likely.
It comes with an internal lens for reduced glare, and can be specified with a warm white or neutral white LED light and a choice of optics for a greater spread of light. Dimming functionality is also supported with a UFO approved dimmer module for added control over your luminaire.
The fitting can be finished in a range of coatings and colours to blend in with its indoor or outdoor environment.
Product Datasheet
Quickstart Guide
UFO LP6 PAVER / GENERAL INFORMATION
IlluminatorWhite Light LED
Operating EnvironmentIP65 rated for indoor or outdoor use
MaterialAluminum or 316 stainless steel
Available FinishesAluminum: Black, silver or custom RAL
Stainless steel: natural

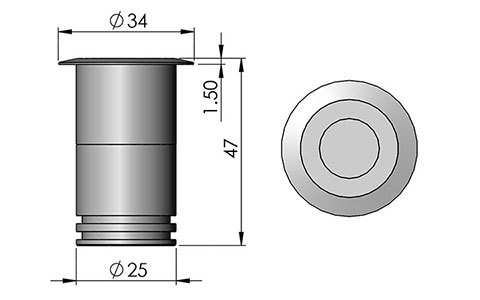

Dimensions34mm (1.34") Diameter x 47mm (1.85") Length
Securing MethodSecured through surface with springs
UFO LP6 PAVER / LED ARRAY DATA
LED TypeOsram Oslon Square
LED Life (L70, B10)>50,000 Hours
Fitting Drive Current350mA
Power Consumption1W @ 350mA
Color Temperature Options3000K or 4000K
CRI (typical)3000K: >96
4000K: >97
LED Luminous Efficacy(based on 15° lens and 350mA driver)
3000K: 47lm/W
4000K: 53lm/W
Driver TypeConstant Current LED Driver Required
UFO LP6 PAVER / OPTICS DATA
Optics FamilyLedil
Available Optics15° / 51°
UFO LP6 PAVER / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Color Temp

Finishes

Color

Model Number:
Notes:
Please state color for custom aluminum finish. Stainless steel finishes are a natural color.
