Sparkle Fittings For Fiber Optics

UFO Mushroom Lens

Small round lens, similar to the star lens but with a hole all the way through for star effects. Has a dome shaped profile
Makes it easier to drill the holes required for small fibers from 0.75mm to 1.5mm, while giving a slightly softer look to the light.
This fitting does not allow as a good a seal as the star lens when used in damp areas.

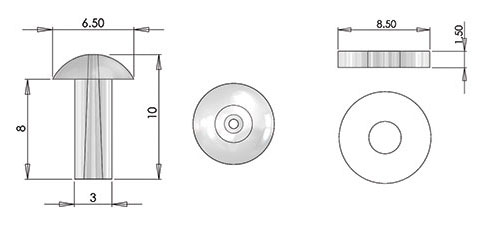

TECHNICAL INFORMATION
MaterialClear Polycarbonate
Weight0.1g (0.004oz)
Mounting MethodPush fit
Mounting Hole Size3mm (0.12")
Fiber Sizes0.75mm, 1.0mm or 1.5mm active diameter
Ordering CodesUFOMUSH-075 (0.75mm fiber)
UFOMUSH-10 (1.0mm fiber)
UFOMUSH-15 (1.5mm fiber)
Product Datasheet
