Paver End Fittings For Fiber Optics

UFO P18 Paver Fitting

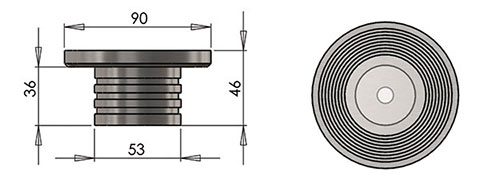

A heavy duty round walkover paver manufactured from stainless steel with toughened clear or frosted glass.
The P18 is especially useful in high traffic areas, as it has a ribbed flange to help prevent slipping in wet areas. Can be used with CP2 pool pipe to aid installation in concrete or tarmac.
Manufactured from 316 stainless steel for a long lifespan.
Please note: this fitting is made to order only. Delivery will be subject to an extended lead time and price will be dependant on the quantity ordered.
TECHNICAL INFORMATION
Glass50mm (2") clear or frosted
Beam Angle70°
Material316 stainless steel
Available FinishesNatural stainless steel
Weight762.1g (1.68lb)
Mounting Hole Size54mm (2.24") diameter
Ferrule SizesM10 or 8mm smooth
Fiber Sizes2mm (0.08") to 8mm (0.32") diameter
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Glass Type

Ferrule Type

Model Number:
