UFO P7 Paver Fitting

An inground directional paver manufactured from stainless steel with clear glass.
This paver has an internally mounted lens which allows light to be directed at an angle. This is the ideal solution where the light has to hit an object such as a wall or sculpture.
The paver body is manufactured from 316 stainless steel for a long lifespan.
Please note: this fitting is made to order only. Delivery will be subject to an extended lead time and price will be dependant on the quantity ordered.

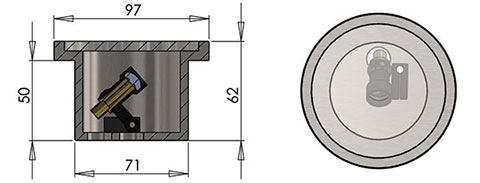

TECHNICAL INFORMATION
Glass80mm (3.3") clear flat lens
Beam Angle70°
Material316 stainless steel body with brass internal lens holder
Available FinishesNatural stainless steel
Weight917g (2.02lb)
Mounting Hole Size72mm (2.84") diameter
Ferrule SizesM10 or 8mm smooth
Fiber Sizes2mm (0.08") to 8mm (0.32") diameter
