UFO P9 Paver Fitting

A small round paver with a domed focusing lens. Manufactured from stainless steel with clear glass.
Ideal for lighting stair treads or creating scalloped uplighting effects as the beam can be focused
Manufactured from 316 stainless steel for a long lifespan.

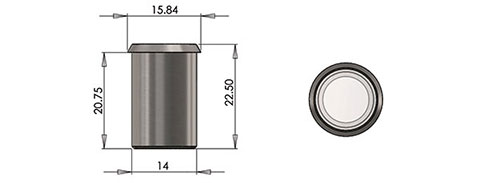

TECHNICAL INFORMATION
Glass13mm (0.51") clear or frosted focusing lens
Beam Angle20° - 40°
Material316 stainless steel
Available FinishesNatural stainless steel
Weight13.3g (0.04lb)
Mounting Hole Size15mm (0.59") diameter
Ferrule SizesM8 or M10
Fiber SizesM8: 2mm (0.08") to 6mm (0.31") diameter
M10: 2mm (0.08") to 8mm (0.32") diameter
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Glass Type

Ferrule Type

Model Number:
Product Datasheet
Installation Guide
