Sparkle Fittings For Fiber Optics

UFO Sparkle Flush Fitting

A miniature lens made from UV stabilised polycarbonate.
Suitable for use in floors and decking, indoors and out. Can also be set into stone or mortar for star paving effects. Needs only a countersunk hole. For outdoor use we recommend using sheathed 1mm fiber for protection.
This fitting is not particularly suited for installation in ceilings as the fiber is slightly recessed and will not be as visible from head height unless the ceiling is quite high.

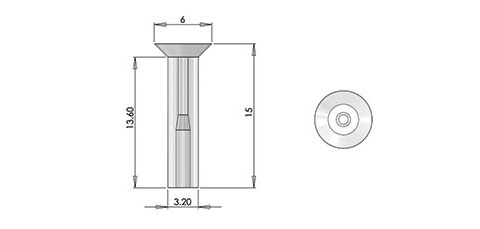

TECHNICAL INFORMATION
MaterialClear Polycarbonate
Weight0.2g (0.007oz)
Mounting MethodPush fit
Mounting Hole Size3.2mm (0.13")
Fiber Sizes0.75mm, 1.0mm or 1.5mm active diameter
Ordering CodesUFOSPF-075 (0.75mm fiber)
UFOSPF-10 (1.0mm fiber)
UFOSPF-15 (1.5mm fiber)
Product Datasheet
