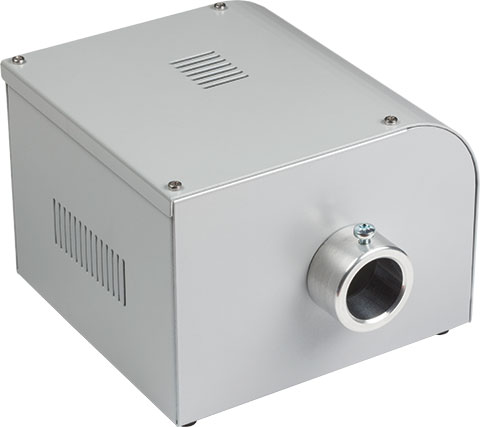

The Vega Decorative offers amazing LED brightness for architectural lighting projects and incorporates a decorative effects wheel for color change or twinkle effects.
With a long lamp life, and very bright white light output, the Vega fits perfectly in situations where tungsten halogen, or even metal halide options would normally be specified.
Very cool and almost silent running combined with a small unit size, make this illuminator suitable for use in restricted spaces, and when fitted in an IP rated enclosure it can easily be situated outside.
Fitted with a standard 30mm fiber port connector, this illuminator is suitable for both new installations and retro-fitting to existing fiber optic installations.
If you are one of the many people who have, in the past, purchased a fiber optic harness for use with a Fiberstars EFO-1+1 or EFO-AG illuminator, you may know that it is now virtually impossible to purchase a compatible, replacement illuminator.
With the EFO adaptor from UFO, your search is at an end!
Simply fit our adaptor collar over the fiber port, and insert the light amplifier into the port. Secure with the supplied screw and then attach your Fiberstars harness as normal.
You can now benefit from the great light output and features of a UFO illuminator without having the cost of replacing your fiber harness.
The adaptor can be supplied pre-attached to new illuminators or as a retro-fit kit for existing ones. Please get in touch to find out more.
The EFO Adaptor is designed to take a standard Fiberstars harness which has a 1” 7/8 ACME 10 TRAPEZOIDAL thread, and features an internal acrylic light amplifier which carries the light directly to the fiber ends.
EFO Large Core Fiber / Pre Assembled Harnesses
Fiberstars Part No.
Description
Each Fiber OD
Each Fiber ID
EFO-HF5-9/8-10 or XX
5 way
9mm (0.354")
8mm (0.266")
EFO-HF4-12/10-10 or XX
4 way
12mm (0.472")
10mm (0.394")
EFO-HF3-14/12-10 or XX
3 way
14mm (0.551")
12mm (0.472")
EFO-HF1-22/19-10 or XX
1 way
22mm (0.866")
19mm (0.748")
EFO Large Core Fiber / with compatible common end
Fiberstars Part No.
Description
Each Fiber OD
Each Fiber ID
EFO-9/8mm
1 way
9mm (0.354")
8mm (0.266")
EFO-12/10mm
1 way
12mm (0.472")
10mm (0.394")
EFO-14/12mm
1 way
14mm (0.551")
12mm (0.472")
EFO-17/15mm
1 way
22mm (0.866")
19mm (0.748")
EFO-22/19mm
1 way
22mm (0.866")
19mm (0.748")
EFO Side Emitting Fiber / with compatible common end
Fiberstars Part No.
Description
Each Fiber OD
Each Fiber ID
EFO-BC1300
1 way
13mm (0.508")
12mm (0.472")
EFO-BC1400-E
1 way
14mm (0.551")
12mm (0.472")
EFO-TT1300
1 way
13mm (0.508")
12mm (0.472")
EFO-TT1400-E
1 way
14mm (0.551")
12mm (0.472")
In addition to the items listed above, the adaptor is compatible with any Fiberstars harness fitted with a common end which has a 1” 7/8 ACME 10 TRAPEZOIDAL thread.
GENERAL INFORMATION
Port Connector Size
30mm diameter
Fiber Type
Glass / PMMA
Material / Finish
Aluminum, Powdercoated (RAL9006)
Dimensions (L x W x H)
160mm x 156mm x 120mm 6.3" x 6.1" x 4.72"
Weight
1.18kg (2.98lb)
Operating Environment
Indoor use - IP20
Min. Ambient Temperature
-10°C (14°F)
Max. Ambient Temperature
45°C (113°F)
LIGHTING & CONTROL INFORMATION
Control Functionality
0-10V / DMX / Manual Dimming
DMX Functionality
User addressable to 512
DMX Channels
2 channels
Color Change Functionality
0-10V / DMX / Manual
Effects Wheel Options and Functionality
Color or twinkle controlled by 0-10V, DMX or manual operation
For DMX operation, twinkle wheels can be supplied in full or segmented versions. The segmented option, controlled by a sensor, has a cutout to allow full light output when the twinkle effect is stopped.
LED ARRAY DATA
LED Array Type
White light
LED Array Power
18W
LED Array Model
Cree Xlamp - MT-G2
LED Array Life (L70, B10)
>36,000 hours (typical)
3000K LED Option
80CRI / 1770lm
4000K LED Option
80CRI / 1820lm
ELECTRICAL CHARACTERISTICS
Supply Voltage
90-264Vac
Mains Running Current
0.23A @240Vac
Mains Voltage VA Rating
50VA
External PSU Type
Meanwell, 24VDC, 2.5A, 60W
Motor Type
Rotalink 25C13/YS0LPSL3E - 12V - 60:1
AVAILABLE ACCESSORIES
MAS0403021R5
Weatherproof enclosure
CONFIGURATIONS
Click the option buttons below to create the fitting model number
MODEL TYPE
COLOR TEMPERATURE
MANUAL DIM*
EFFECT
CONTROL
Model Number:
*Manual dimming is only available on illuminators with manual control option. The Vega XCM(color wheel) & Vega XTM (twinkle wheel) have manual speed control on the decorative motor. On these versions the light output is set to maximum and cannot be dimmed.
The Vega MCM & Vega MTM have manual speed control on the decorative motor and also manual dimming control of the LED. The light output can be adjusted manually using the controlon the rear of the unit from no light output to maximum light output.
