Cabinet Lighting Extrusions
Cabinet mounting extrusions allow the use of conventional recessed downlight type fittings where it is only possible to surface mount.
The extrusion forms a conduit which conceals the fiber tails until they can be exited fom the end. We normally supply the harness pre-fitted to the extrusion or we can supply the extrusion on its own.
Product DatasheetSpecifications
Compatible Downlights
Features & Specifications

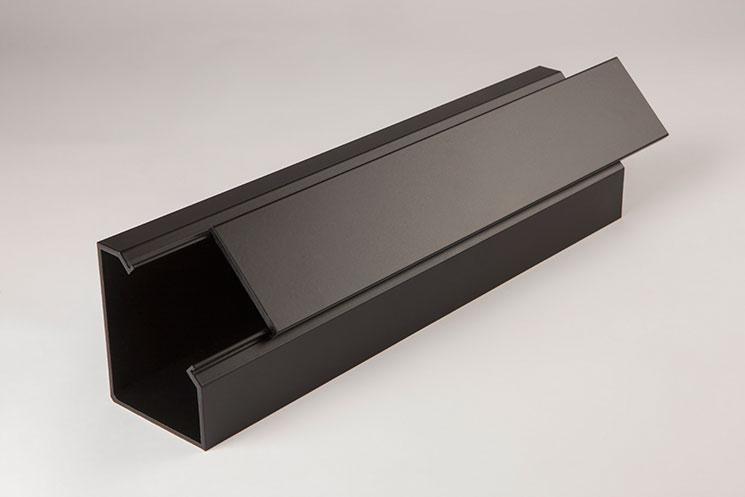

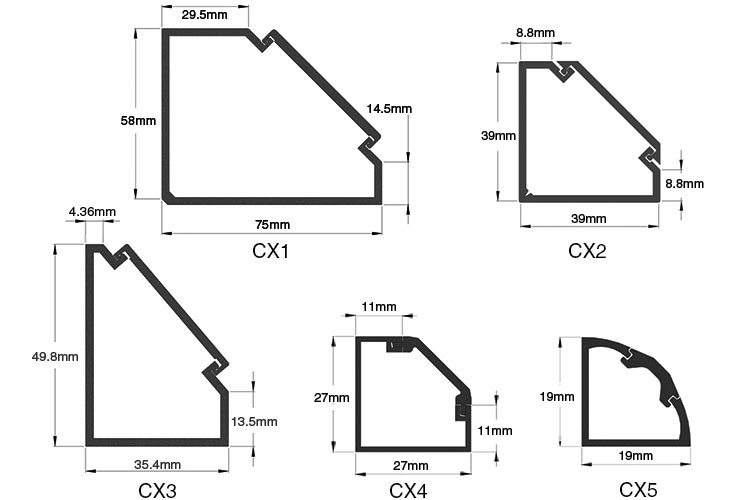

There are five different sizes of extrusion available, from the largest, CX1, to the smallest CX5.
All our extrusions have sliding front faces to allow fiber and fittings to be mounted easily.

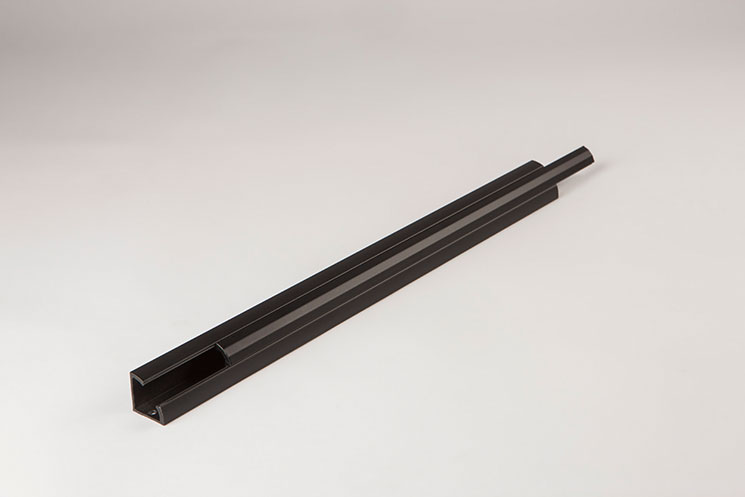

The small CX5 extrusion is unique in that it does not allow for downlights to be fitted to it. Instead it allows for the mounting of fiber tails which shine out through the small holes in the extrusion's surface.
Note that dimensions are shown in mm.
Extrusions come in the maximum lengths shown below. They can be cut to size required, or joined to make longer lengths.
- CX1: 6 meters (19.68ft)

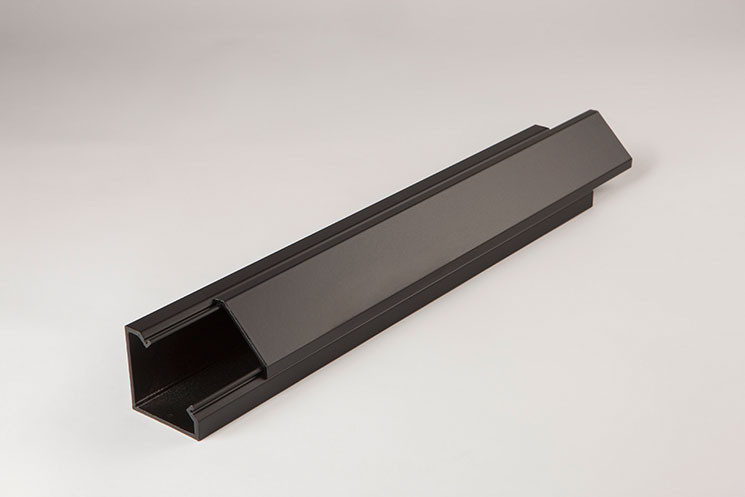

- CX2: 4 meters (13.12ft)

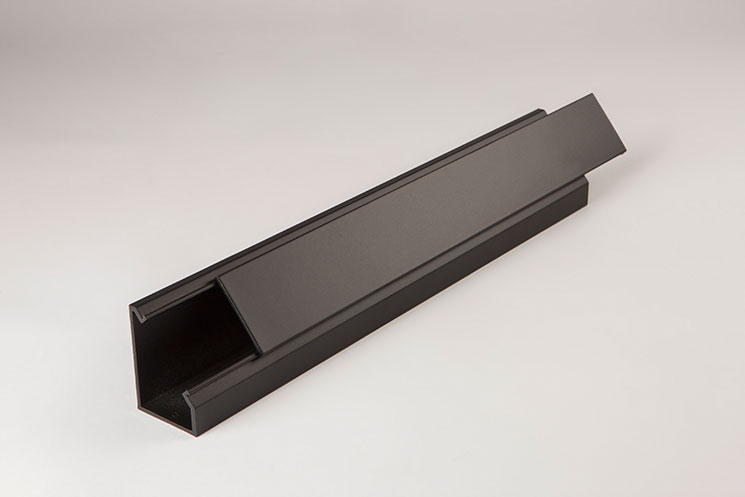

- CX3: 3 meters (9.84ft)

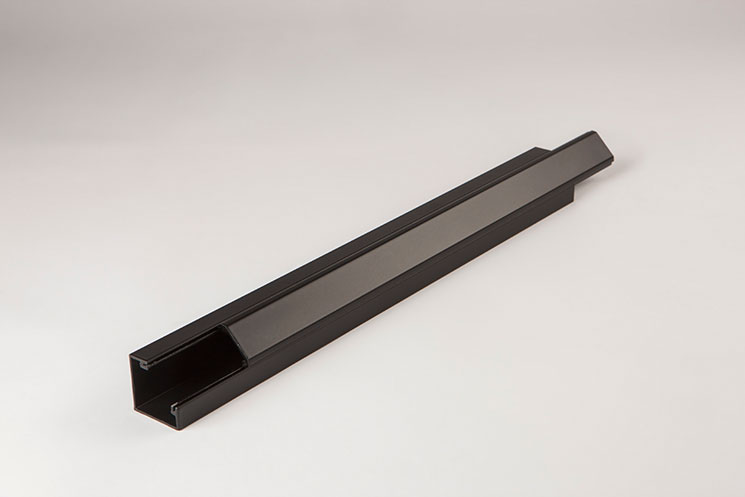

- CX4: 3 meters (9.84ft)
- CX5: 3 meters (9.84ft)
Compatible Downlight Fittings
We offer a range of three different downlight fittings to fit in these extrusions.
The larger extrusions (CX1, CX2 & CX3) can be used with any of these fittings, whilst the smaller extrusion (CX4) is suitable for use with the UFO34DA or UFO34DB fittings

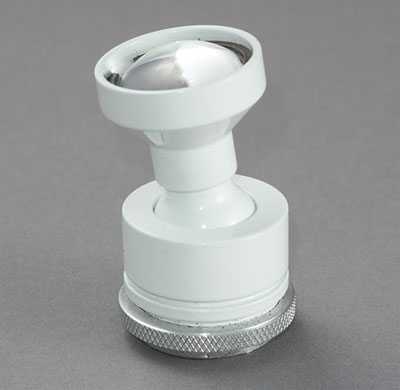

UFO 14DB
| TECHNICAL INFORMATION | |
|---|---|
| Lens | 26mm (1.02") domed clear focusing lens |
| Focus Range | 20° - 30° |
| Rotation & Tilt | 360° rotation / 28° tilt |
| Material | Aluminum |
| Available Finishes | Aluminum: black, white, chrome or natural |
| Ferrule Size | M10 or 8mm smooth |
| Fiber Sizes | 2mm to 8mm |

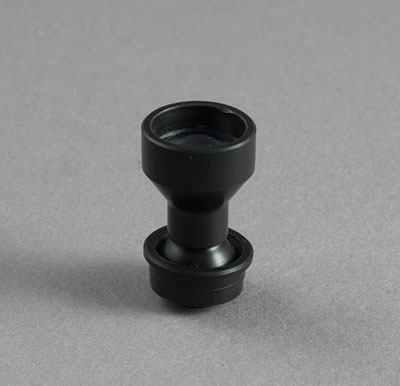

UFO 34DA
| TECHNICAL INFORMATION | |
|---|---|
| Lens | 13mm (0.51") clear domed lens |
| Beam Angles | 20° - 30° |
| Rotation & Tilt | 360° rotation / 60° tilt |
| Material | Acetal |
| Available Finishes | Black |
| Ferrule Size | Custom |
| Fiber Sizes | 1mm to 3mm |

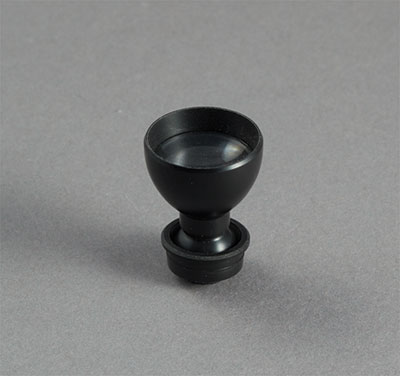

UFO 34DB
| TECHNICAL INFORMATION | |
|---|---|
| Lens | 18mm (0.71") clear biconvex lens |
| Beam Angles | 55° - 60° |
| Rotation & Tilt | 360° rotation / 60° tilt |
| Material | Acetal |
| Available Finishes | Black |
| Ferrule Size | Custom |
| Fiber Sizes | 1mm to 3mm |
