UFO 17T Submersible Fitting
A stainless steel paver end fitting with clear glass window. Has a threaded back for simple fixing through a mounting surface.
The P17T fitting is popular in spa pools and baths where the nut can be used to fix it through the typically thin surface of either.
Whilst this fitting is can be used in constant immersion conditions, it is not suitable for installation where it will be under significant pressure.

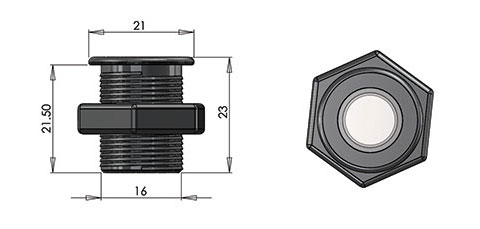

Note that dimensions are shown in mm
| TECHNICAL INFORMATION | |
|---|---|
| Lens | 13mm (0.51") domed, clear or frosted |
| Material | 316 stainless steel |
| Available Finishes | Natural stainless steel |
| Weight | 37.5g (0.08lb) |
| Mounting Hole Size | 17mm (0.67") |
| Ferrule Sizes | M8 or M10 |
| Fiber Sizes | 2mm (0.08") to 8mm (0.32") diameter |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
Model Type
Material
Ferrule Type
Lens Type
Model Number:
