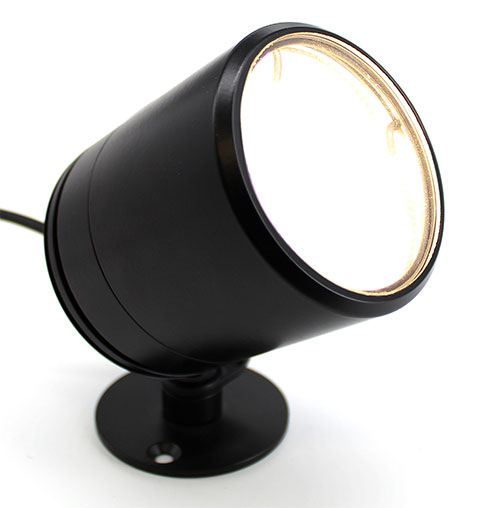

UFO LM3 LED Spotlight Fitting
A larger-sized surface mount spotlight. Supplied with mounting bracket.
Available in a range of finishes, this fitting can be rotated and tilted to point directly at any objects to be illuminated. This fitting is also available for use outdoors and is suitable for use where access above or below the mounting surface is not available.
The power cable can be threaded through the base of the fitting if required to create a neat finish.
Of course, like for all models in this range there are also high CRI LED array options available making it very suitable for use in display lighting applications. The XIM & XTM module options make for a very high powered spotlight fitting.
| UFO LM3 SPOTLIGHT / GENERAL INFORMATION | |
|---|---|
| Light source | White Light LED |
| LED Module Options | Xicato XIM or Xicato XTM |
| Colour Temperature Options | 2700K or 3000K |
| Operating Environment | IP66 rated for indoor or outdoor use |
| Material | Aluminium |
| Available Finishes | Black as standard. Custom RAL finish available to special order |

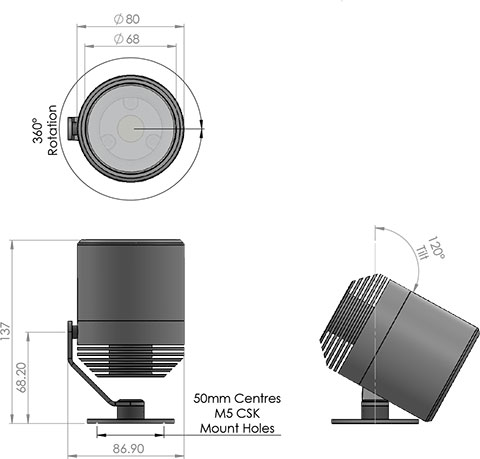

| Dimensions | 80mm Diameter x 137mm Length |
| Securing Method | Surface mount, secured with screws |
| UFO LM3 SPOTLIGHT / ARTICULATION | |
|---|---|
| Rotation | 360° |
| Tilt | 120° lockable |
| UFO LM3 SPOTLIGHT / XIM MODULE | |
|---|---|
| Power Requirements | 48V Constant Voltage |
| Module Options | 9mm LED - 80CRI - 18.8W - 1300lm 9mm LED - 95CRI - 12.5W - 700lm 19mm LED - 80CRI - 12.6W - 1300lm 19mm LED - 95CRI - 17.2W - 1300lm |
| UFO LM3 SPOTLIGHT / XTM MODULE | |
|---|---|
| Power Requirements | Constant Current |
| Module Options* | 9mm LED - 80CRI - max. 15.6W - 1300lm 9mm LED - 95CRI - max. 23.6W - 1300lm 19mm LED - 80CRI - max. 19.9W - 2700lm 19mm LED - 95CRI - max. 19.9W - 2140lm |
*Lower power options are available if required - contact us for details
| UFO LM3 SPOTLIGHT / OPTICS DATA | |
|---|---|
| Available Optics (9mm LED) | 12° / 20° / 23° / 35° |
| Available Optics (19mm LED) | 21° / 25° / 28° / 41° / 62° |
| UFO LM2 SPOTLIGHT / DRIVER DIMMING OPTIONS | |
|---|---|
| Xicato XIM Modules | Bluetooth (Xicato Controlled) |
| Xicato XTM Modules | DALI, 0-10V, Mains or Bluetooth (Casambi Controlled) |
| UFO LM3 SPOTLIGHT / MOUNTING ACCESSORIES | |
|---|---|
| Side Cable Base Spacer Product Code: UFO-LM-SCBS | Allows the cable to exit from the side of the mounting foot rather than straight through the back face. Supplied as standard with each fitting. See the downloadable Accessory Guide for fitting instructions. |
| UFO LM3 SPOTLIGHT / OPTICAL ACCESSORIES | |
|---|---|
| Option 1 | Honeycomb Louver |
| Option 2 | Diffuser Lens |
Note: On models fitted with XIM modules only 1 optical accessory can be fitted at a time . Models fitted with XTM modules can accept 2 optical accessories at once. See the downloadable accessory guide for installation instructions.
